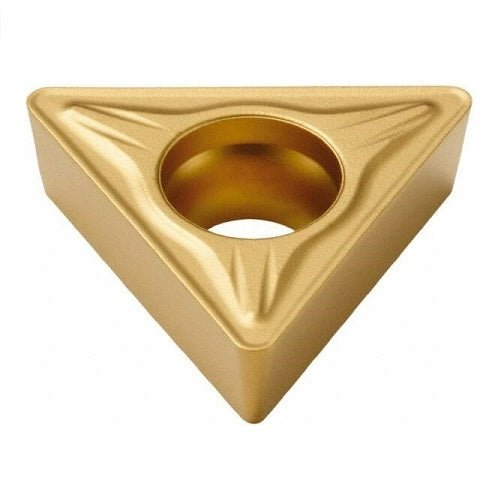

Seco TCMT16T308-M5 Turning Insert TP40
Available
Genuine Seco triangular turning insert, Grade TP40 with M5 chipbreaker.
Key Specifications
| Grade | TP40 |
|---|---|
| Substrate / Coating | Carbide CVD |

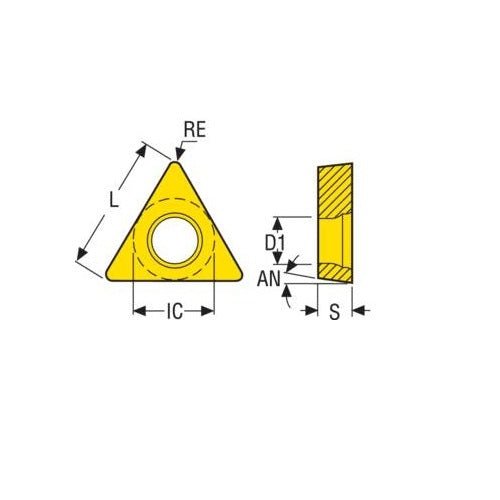

| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | M5 |
| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade TP40
Carbide CVD. CVD Coated. The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings. TiC/Ti(C,N) + TiN.
About the M5 Chipbreaker
A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron. Combines high edge strength with comparatively low cutting forces. Safe action in interruptions and rough skin on parts also including boring. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
