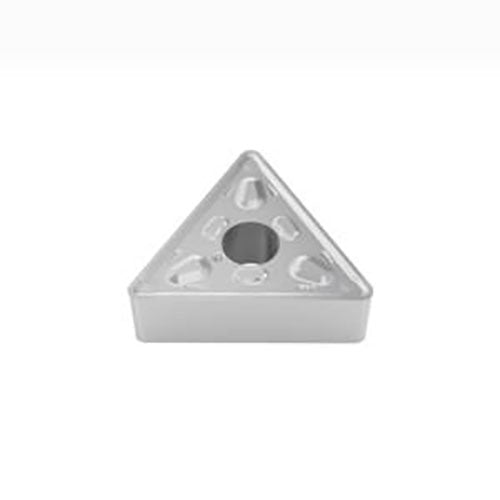

Seco Turning Insert T Shape Code 4.76 x 0.79 x 9.53mm G Insert Type - M6 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG160408-M6,TP2501 10pcs

Turning Insert TNMG Insert Style - M6 Grade TP2501 9.53mm Inscribed Circle Diameter (IC)

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TP2501 insert grade.
• 9.53mm inscribed circle diameter (IC).

TP2501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M6 Chipbreaker Programme

• Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
• A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
• Well suited also for machining of ferritic and martensitic stainless steels.
• Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
