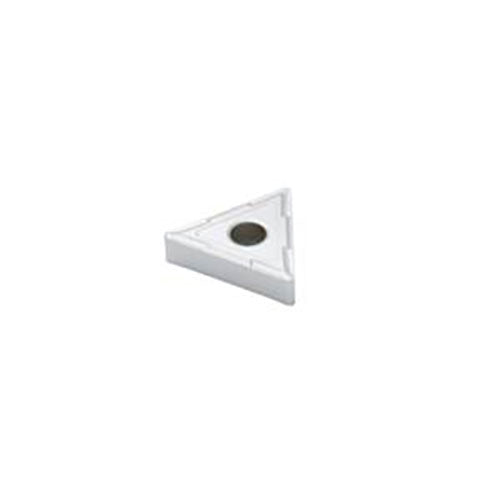

Seco Turning Insert T Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF2 Grade TP1501 ± 0.13/± 0.05mm Tolerance TNMG220408-MF2,TP1501 10pcs

Turning Insert TNMG Insert Style - MF2 Grade TP1501 12.7mm Inscribed Circle Diameter (IC)

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TP1501 insert grade.
• 12.7mm inscribed circle diameter (IC).

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

• First choice for finishing with negative inserts.
• Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
• Good capacity for medium rough machining.
• Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
