Turning Insert TNMG Insert Style - M5 | AIMS Industrial

***Illustrations shown may vary from actual product***

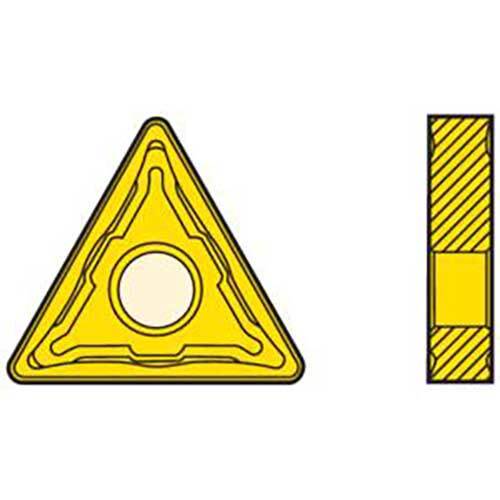

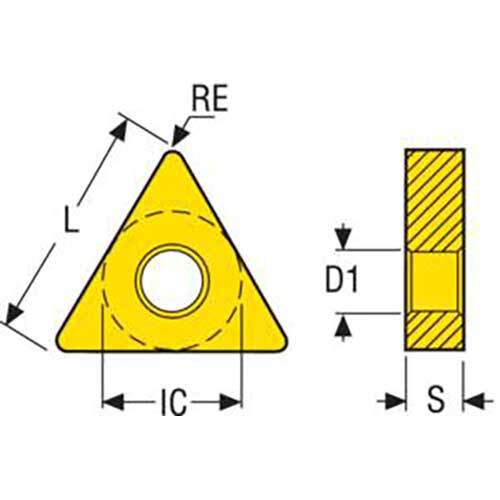

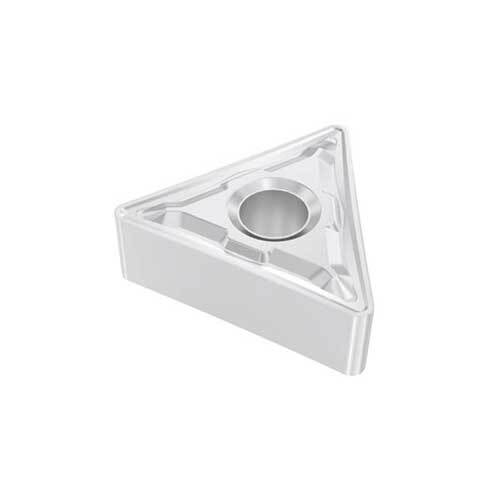

Turning Insert TNMG Insert Style - M5 Grade TM1501

• T shape code
• G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

• Duratomic® grade.
• The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
• Complements in mixes of steel and stainless steel turning.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Safe action in interruptions and rough skin on parts also including boring.
• Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
