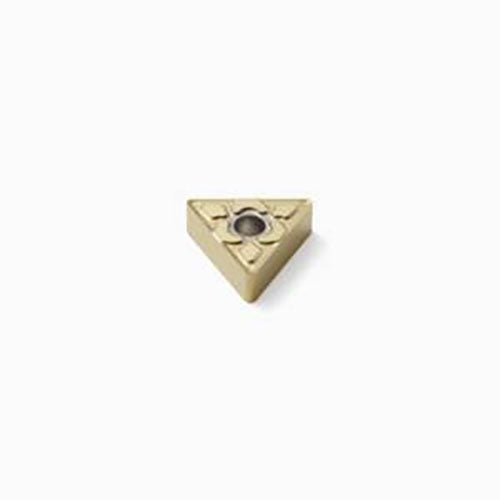

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MF4 Grade CP500 ± 0.13/± 0.05mm Tolerance TNMG160408-MF4,CP500 10pcs

Turning Insert TNMG Insert Style - MF4 Grade CP500

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• CP500 insert grade.

CP500 Insert Grade

• Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
• Especially suitable in intermittent cuts.
• (Ti, Al)N + TiN

MF4 Chipbreaker Programme

• Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
• Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
