Turning Insert TNMG Insert Style - MF4 | AIMS Industrial

***Illustrations shown may vary from actual product***

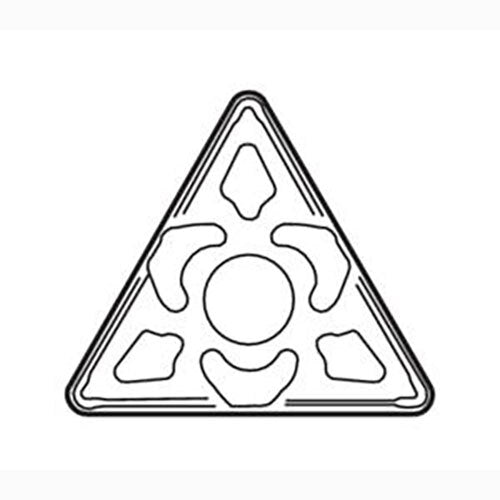

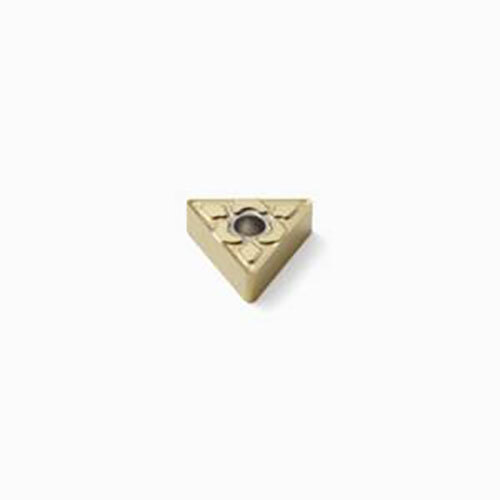

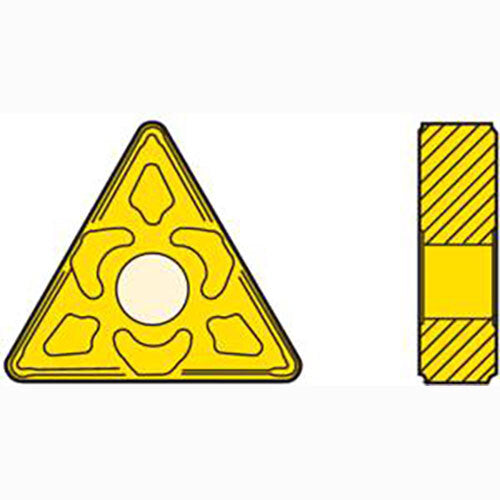

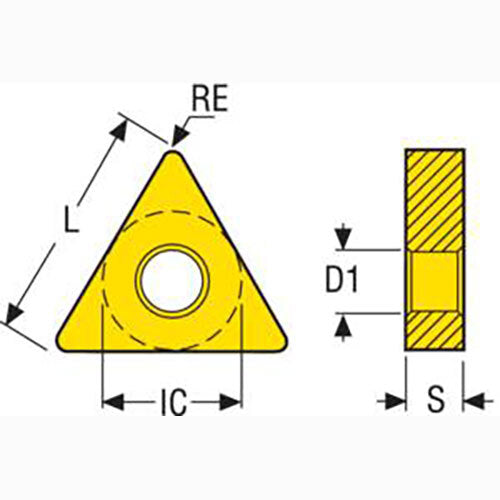

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MF4 Grade TS2000 ± 0.13/± 0.05mm Tolerance TNMG160408-MF4,TS2000 10pcs

Turning Insert TNMG Insert Style - MF4 Grade TS2000

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TS2000 insert grade.

TS2000 Insert Grade

• Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
• (Ti, Al)N + TiN.

MF4 Chipbreaker Programme

• Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
• Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
