Turning Insert TNMX Insert Style - W-M3 | AIMS Industrial

***Illustrations shown may vary from actual product***

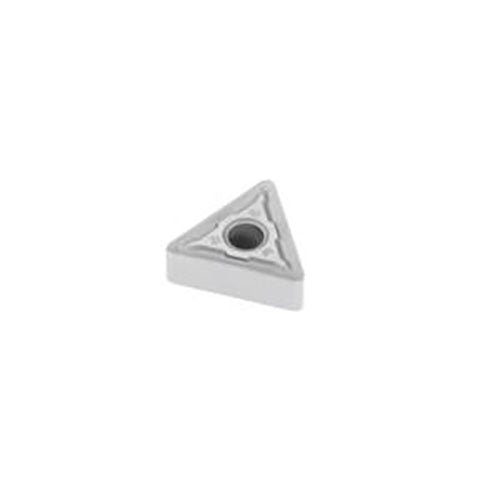

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm X Insert Type - W-M3 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMX160408W-M3,TP2501 10pcs

Turning Insert TNMX Insert Style - W-M3 Grade TP2501

• T shape code.
• X insert type.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-M3 Chipbreaker Programme

• Versatile chipbreaker for high feed finishing and medium-roughing machining of steel, stainless steel and cast iron.
• Operates in a wide application area.
• Gives a good surface finish even at high feeds.
• Indicative machining range: f = 0,2-0,9 mm/rev, ap = 0,5-6,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
