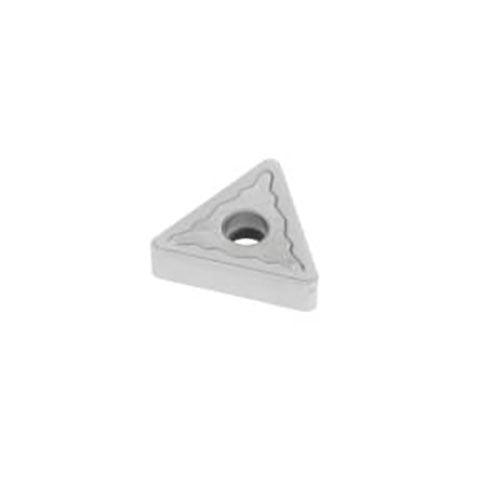

Seco Turning Insert T Shape Code 4.76 x 1.2 x 9.53mm G Insert Type - MR7 Grade TP1501 ± 0.13/± 0.05mm Tolerance TNMG160412-MR7,TP1501 10pcs

Turning Insert TNMG Insert Style - MR7 Grade TP1501

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TP1501 insert grade.

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR7 Chipbreaker Programme

• The strongest chipbreaker for double-sided inserts.
• The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
• The chipbreaker has a wide negative T land, which gives high edge strength.
• Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
