Seco TCGT110202L-UX Turning Insert CP500
Available
Genuine Seco triangular turning insert, Grade CP500 with UX chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | UX |

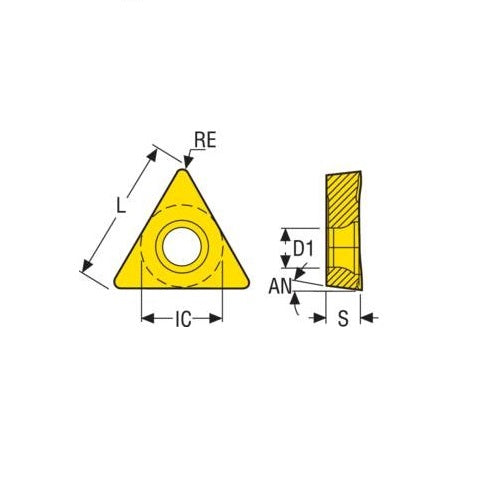

| Insert Details | T shape code. T Insert Type. 7° insert side clearance angles. |
About Grade CP500
Carbide PVD. PVD Coated Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti,Al)N + TiN

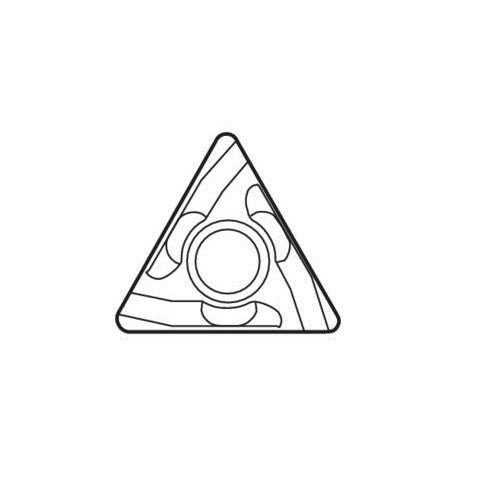

About the UX Chipbreaker
Chipbreaker for positive inserts. Smooth and easy chip flow on finishing and medium roughing in steel and stainless steel. Well suited for slim components. Indicative machining range: f = 0,05–0,40 mm/rev, ap = 0,5-4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
TCGT110202L-UX
Model Number: 02497624
-
TCGT110202R-UX
Model Number: 02497623
-
TCGT110204L-UX
Model Number: 02497626
-
TCGT110204R-UX
Model Number: 02497625
