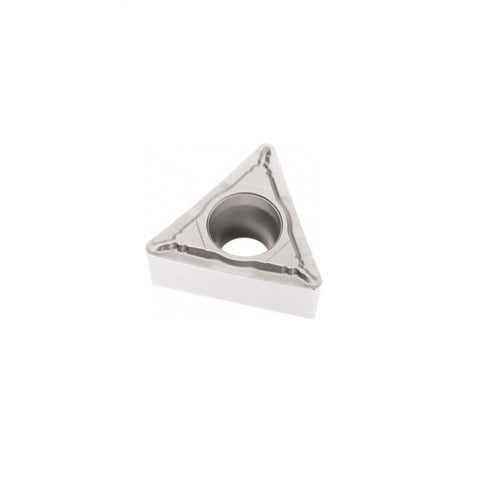

Seco TCMT16T304-F1,TP1501 Turning Insert
Available
Genuine Seco triangular turning insert, Grade TP1501 with F1 chipbreaker.
Key Specifications
| Grade | TP1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | F1 |

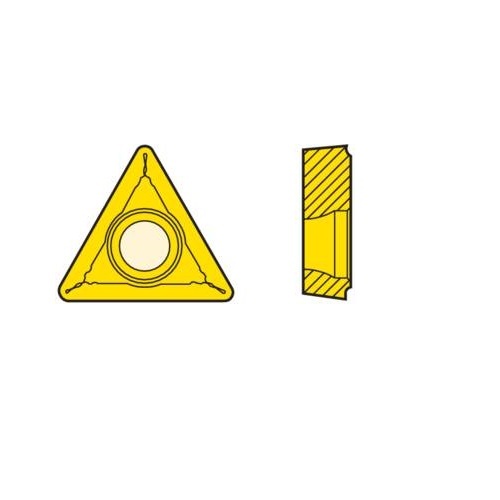

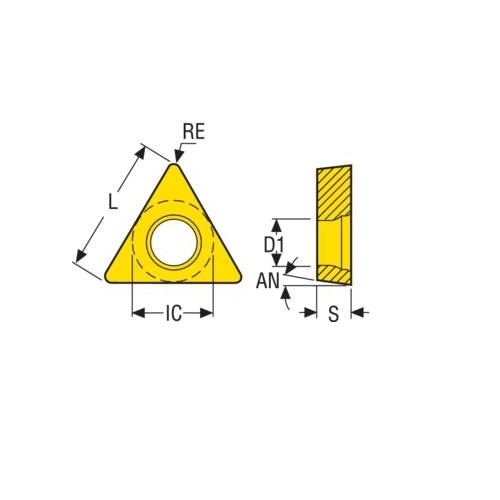

| Insert Details | T shape code. T Insert Type. 7° insert side clearance angles. |
About Grade TP1501
Carbide CVD. CVD Coated. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for the productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

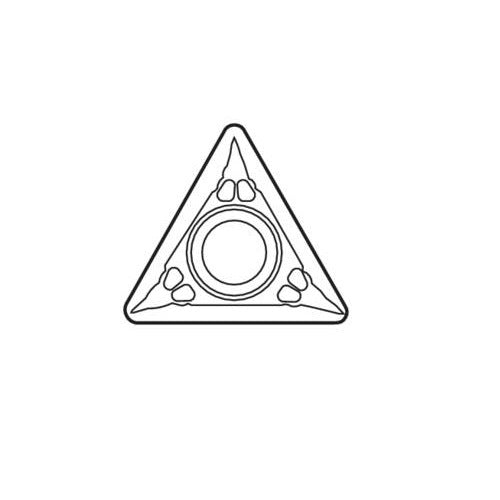

About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
TCMT16T304-F1,TP1501
Model Number: 02960405
-
TCMT16T308-F1,TP1501
Model Number: 02960407
-
TCMT16T312-F1,TP1501
Model Number: 02960409
-
TCMT16T308-F1,TP2501
Model Number: 02960408
-
TCMT16T304-F1,TP2501
Model Number: 02960406
-
TCMT16T302-F1,TP3501
Model Number: 03096639
-
TCMT16T304-F1,TP3501
Model Number: 03096640
-
TCMT16T308-F1,TP3501
Model Number: 03096643
-
TCMT16T312-F1,TP3501
Model Number: 03096646
-
TCMT110202-F1,TP3501
Model Number: 03096634
-
TCMT110204-F1,TP1501
Model Number: 02960401
-
TCMT110204-F1,TP2501
Model Number: 02960402
-
TCMT110204-F1,TP3501
Model Number: 03096635
-
TCMT110208-F1,TP1501
Model Number: 02960403
-
TCMT110208-F1,TP2501
Model Number: 02960404
-
TCMT110208-F1,TP3501
Model Number: 03096637
