Seco TCMT16T304-F1,TP40 Turning Insert
The price shown is for the pack.
Available

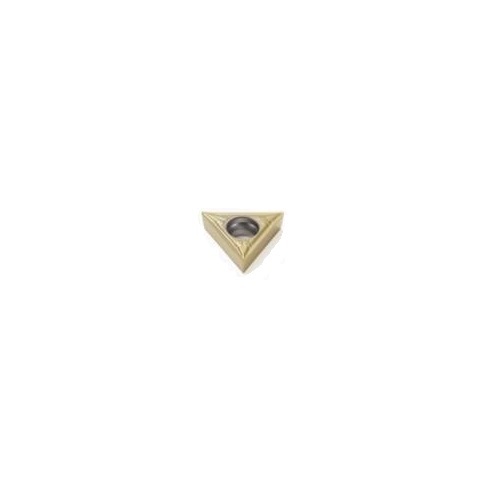

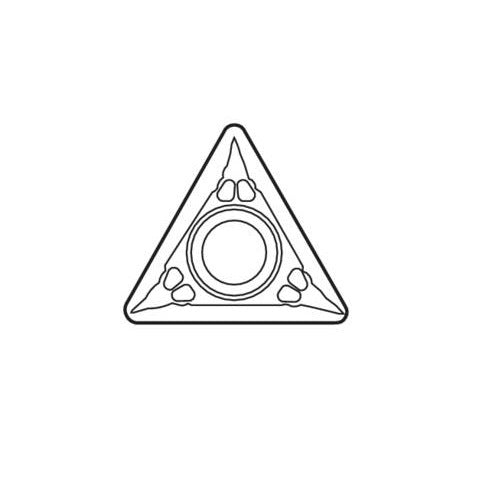

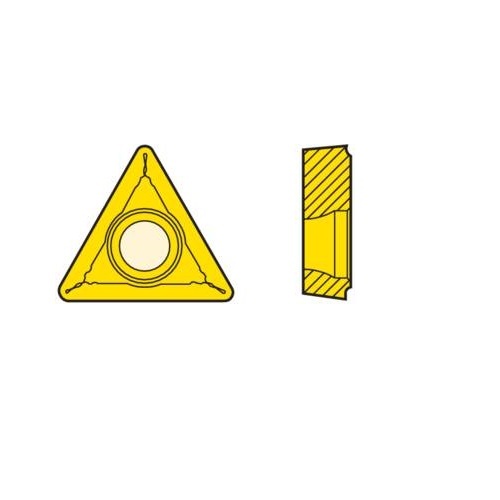

Genuine Seco triangular turning insert, Grade TP40 with F1 chipbreaker.
Key Specifications
| Grade | TP40 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | F1 |
| Insert Details | T shape code. T Insert Type. 7° insert side clearance angles. |
About Grade TP40
Carbide CVD. CVD Coated. The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings. TiC/Ti(C,N) + TiN.
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Seco Turning Insert TCMT Insert Style - F1 7° Grade TP40: TCMT16T304-F1,TP40
SKU: A0116284 | Model: 00008601

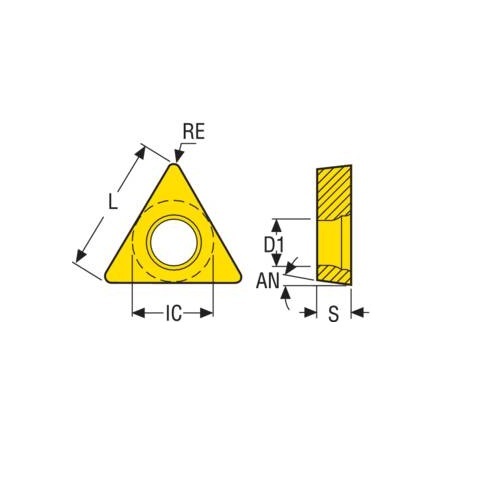

Seco Turning Insert T Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F1 7° Grade TP40 ± 0.13/± 0.05mm TCMT16T304-F1 Pack of 10
Turning Insert T Shape Code T Insert Type - F1 7° Grade TP40
T shape code.
T Insert Type.
7° insert side clearance angles.
TP40 Insert Grade
CVD Coated.
The universal grade for extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.
F1 Chipbreaker Programme
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
Suitable for high feed rates at fine depths of cut in precision forgings and castings.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
