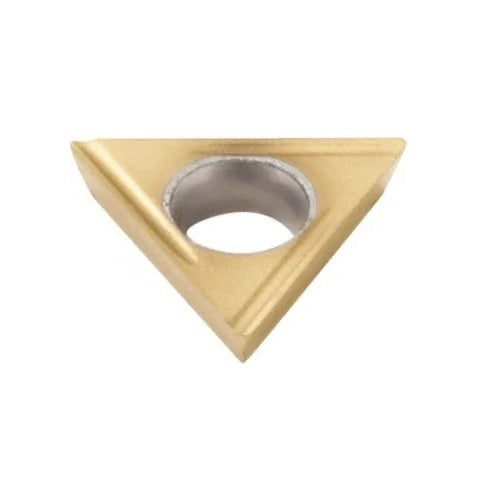

Seco Turning Insert T Shape Code 1.19 x 0.2 x 4.06mm H Insert Type Left 15° Grade CP500 ± 0.025/± 0.025mm TDCH06T002L Pack of 10
Turning Insert T Shape Code H Insert Type 15° Grade CP500
- T shape code
- H Insert Type.
- 15° insert side clearance angles.
- ± 0.025/± 0.025mm tolerance.
CP500 Insert Grade
- PVD coated.
- Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
- Especially suitable in intermittent cuts.
- (Ti, Al)N + TiN.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Seco Turning Insert TDCH Insert Style 15° Grade CP500
Seco Turning Insert TDCH Insert Style 15° Grade CP500
SKU: A0116365
Type: Turning Insert
- Wide Range
- Reliable Services
- Proven Trust
Available
The Seco Turning Insert TDCH Insert Style 15° Grade CP500 by SECO is a PVD coated Turning Insert. It provides ± 0.025/± 0.025mm tolerance and is suitable for turning of stainless steel.
