Seco VNGM160404-MF1 Turning Insert TS2000
Available

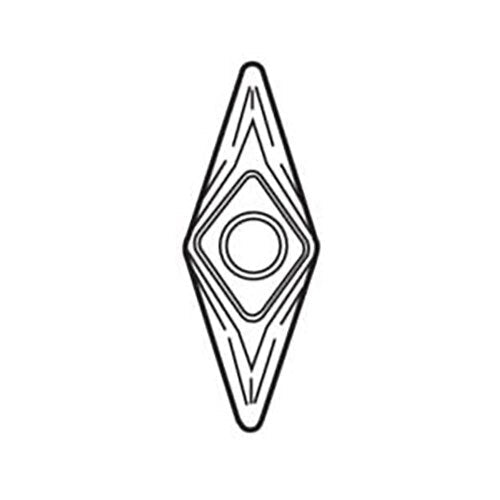

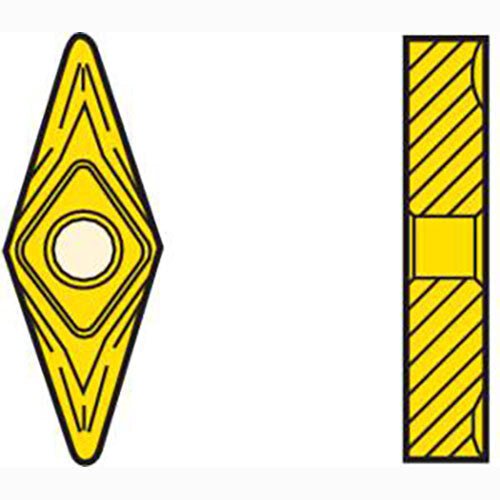

Genuine Seco 35° rhombic (diamond) turning insert, Grade TS2000 with MF1 chipbreaker.
Key Specifications
| Grade | TS2000 |
|---|---|

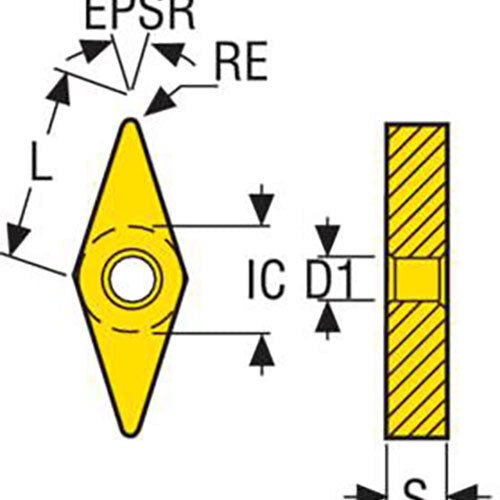

| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Chipbreaker | MF1 |
| Insert Details | V shape code. M insert type, with hole and chipbreaker on one face only. TS2000 insert grade. |
About Grade TS2000
Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels. (Ti, Al)N + TiN
About the MF1 Chipbreaker
Chipbreaker intended for machining stainless steel, superalloys and titanium alloys. Type ..GG insert has a sharp, precision ground edge. Type ..MG insert has a lightly honed cutting edge for increased strength. MF1 is intended for use in semi-finishing and finishing applications. Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
