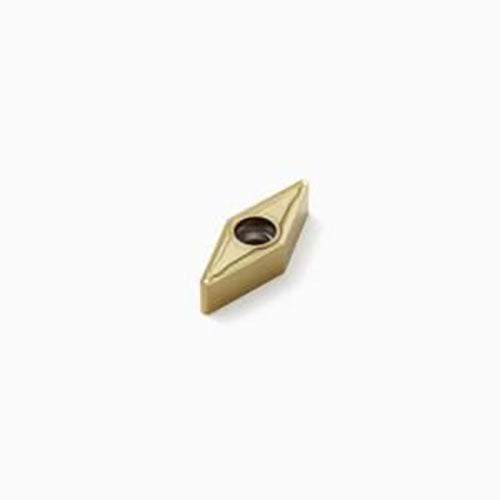

Seco Turning Insert V Shape Code 4.76 x 0.8 x 7.94mm U Insert Type - M3 Grade TS2000 ± 0.13/± 0.05mm Tolerance VNMU130408-M3,TS2000 10pcs
Turning Insert VNMU Insert Style - M3 Grade TS2000
- V shape code.
- U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
- TS2000 insert grade.
TS2000 Insert Grade
- Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
- (Ti, Al)N + TiN.
M3 Chipbreaker Programme
- First choice for medium-rough machining and also the most versatile Seco chipbreaker.
- In most cases, it is the only chipbreaker needed.
- It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
- Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
- Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
