Seco Turning Insert VBMT Insert Style - F1 5° Grade TP3501

***Illustrations shown may vary from actual product***

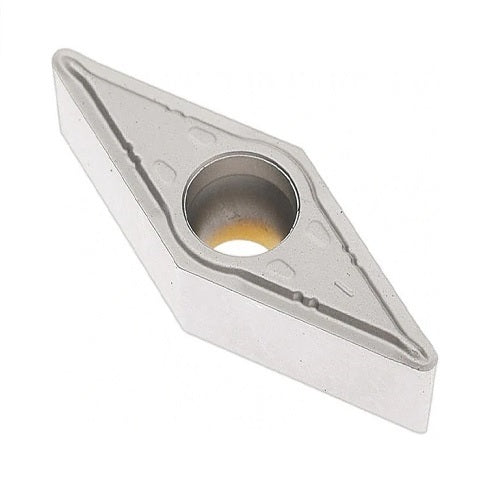

Seco Turning Insert V Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - F1 5° Grade TP3501 ± 0.05/± 0.05mm VBMT110202-F1 Pack of 10

Turning Insert V Shape Code T Insert Type - F1 5° Grade TP3501

• V shape code.
• T Insert Type.
• 5° insert side clearance angles.

TP3501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

F1 Chipbreaker Programme

• Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
• Suitable for high feed rates at fine depths of cut in precision forgings and castings.
• Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
• Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
