Seco VBMT110202-F1,CP500 Turning Insert
Available

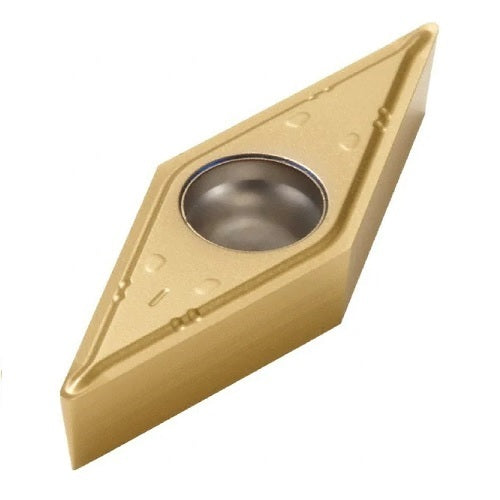

Genuine Seco 35° rhombic (diamond) turning insert, Grade CP500 with F1 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Chipbreaker | F1 |

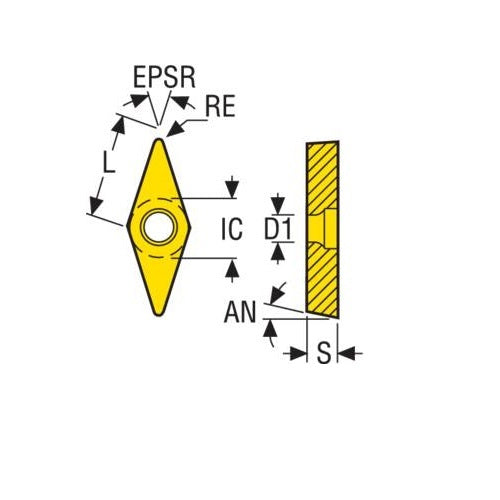

| Insert Details | T Insert Type. 5° insert side clearance angles. ± 0.05/± 0.05mm tolerance. |
About Grade CP500
Carbide PVD. PVD coated. Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN
About the F1 Chipbreaker
Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties. Suitable for high feed rates at fine depths of cut in precision forgings and castings. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm. Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
VBMT110202-F1,CP500
Model Number: 00092488
-
VBMT110204-F1,CP500
Model Number: 00096708
-
VBMT110208-F1,CP500
Model Number: 00000166
-
VBMT110302-F1,CP500
Model Number: 02620526
-
VBMT110304-F1,CP500
Model Number: 02620529
-
VBMT110308-F1,CP500
Model Number: 02620532
-
VBMT160402-F1,CP500
Model Number: 02430446
-
VBMT160404-F1,CP200
Model Number: 02430217
-
VBMT160404-F1,CP500
Model Number: 00000169
-
VBMT160404-F1,TS2000
Model Number: 02615888
-
VBMT160408-F1,CP500
Model Number: 00000175
-
VBMT160408-F1,TS2000
Model Number: 02615889
-
VBMT160408-F1,CP200
Model Number: 02421556
