Seco VBMT160404-M3,TK0501 Turning Insert
Available

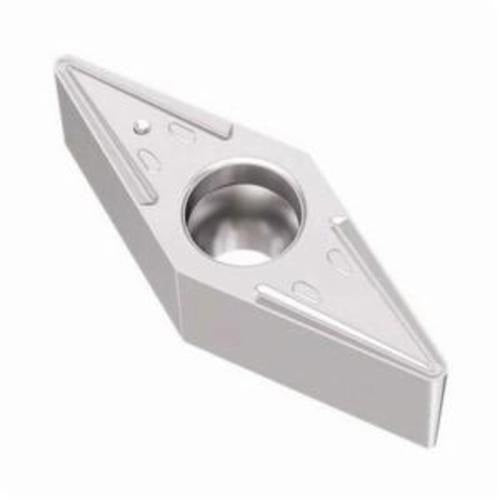

Genuine Seco 35° rhombic (diamond) turning insert, Grade TK0501 with M3 chipbreaker.
Key Specifications
| Grade | TK0501 |
|---|---|

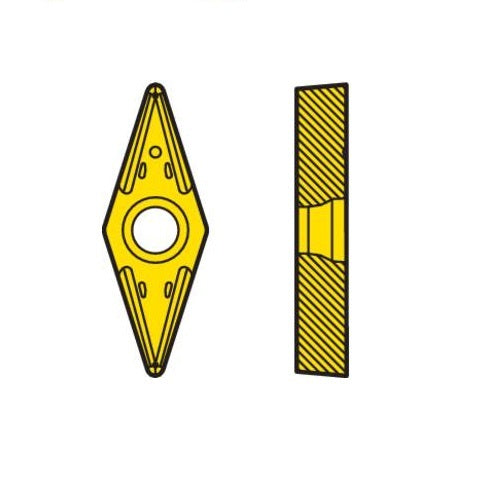

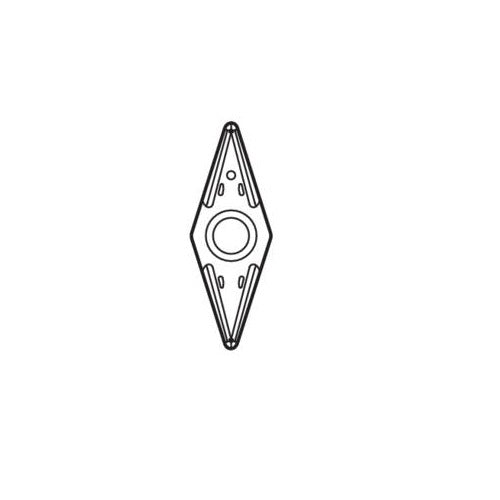

| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Chipbreaker | M3 |

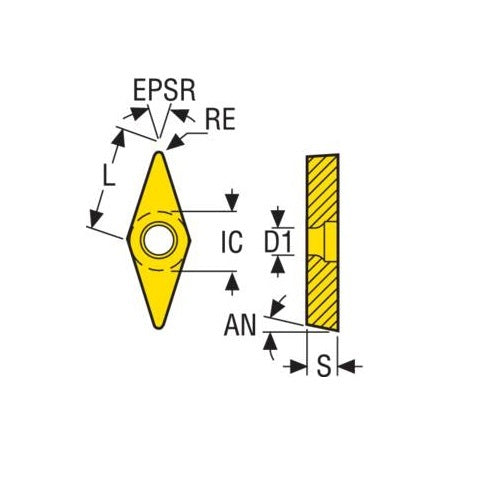

| Insert Details | T Insert Type. 5° insert side clearance angles. |
About Grade TK0501
CVD Coated. Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
VBMT160404-M3,TK0501
Model Number: 03062600
-
VBMT160404-M3,TK1501
Model Number: 03063992
-
VBMT160404-M3,TP1501
Model Number: 02960907
-
VBMT160404-M3,TP2501
Model Number: 02960917
-
VBMT160404-M3,TP3501
Model Number: 03096657
-
VBMT160408-M3,TK1501
Model Number: 03062770
-
VBMT160408-M3,TP1501
Model Number: 02960912
-
VBMT160408-M3,TP3501
Model Number: 03096660
-
VBMT160408-M3,TP2501
Model Number: 02960918
-
VBMT160412-M3,TP1501
Model Number: 02960898
-
VBMT160412-M3,TP3501
Model Number: 03093882
-
VBMT160412-M3,TP2501
Model Number: 02960914
