Seco VBMT160408-M5,TK1501 Turning Insert
Available

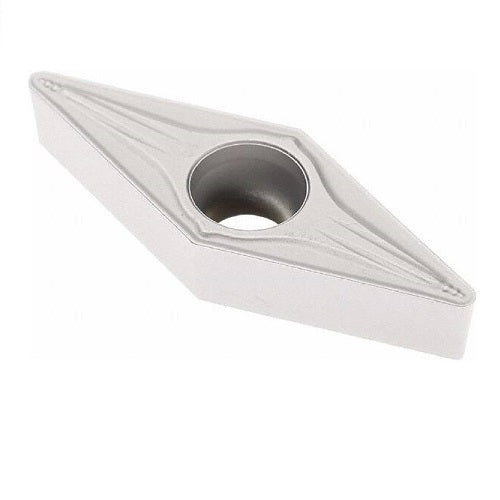

Genuine Seco 35° rhombic (diamond) turning insert, Grade TK1501 with M5 chipbreaker.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |

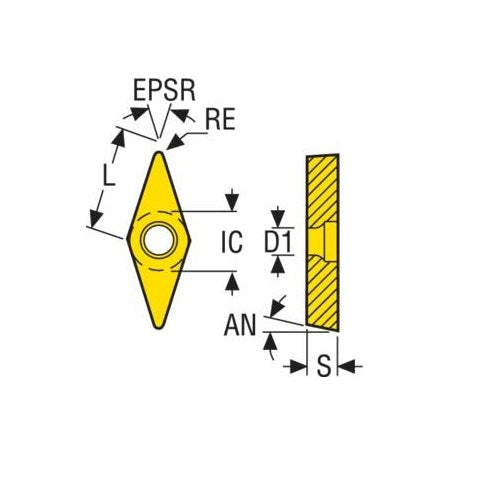

| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |

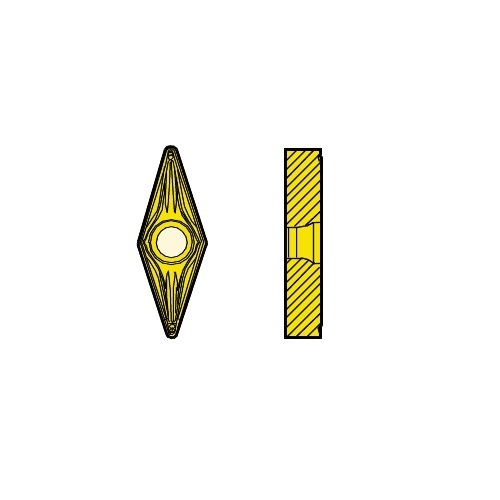

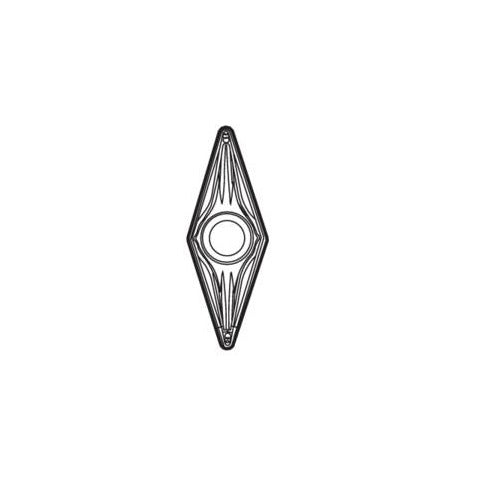

| Chipbreaker | M5 |
| Insert Details | T Insert Type. 5° insert side clearance angles. |
About Grade TK1501
Carbide CVD. CVD Coated. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M5 Chipbreaker
A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron. Combines high edge strength with comparatively low cutting forces. Safe action in interruptions and rough skin on parts also including boring. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
