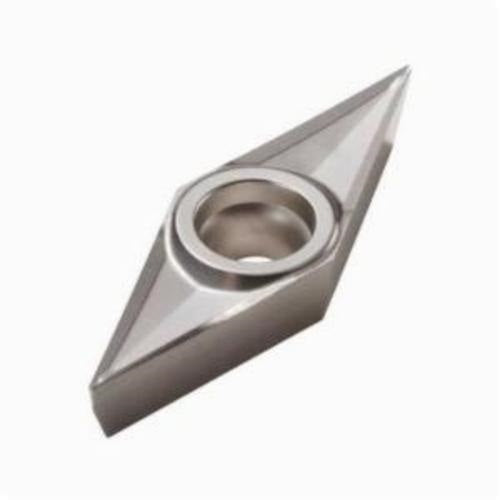

Seco VCGT110302F-AL Turning Insert
Available
Genuine Seco 35° rhombic (diamond) turning insert, Grade KX with AL chipbreaker.
Key Specifications
| Grade | KX |
|---|---|
| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Chipbreaker | AL |

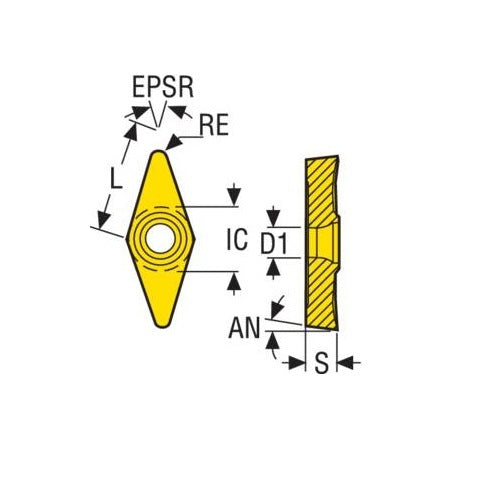

| Insert Details | T Insert Type. 7° insert side clearance angles. |
About Grade KX
Uncoated. Optimized micrograin grade intended for the machining of aluminium and other non-ferrous materials.
About the AL Chipbreaker
Chipbreaker for positive inserts. Intended for machining of aluminium alloys. The highly polished rake face and the very large rake angle ensure extremely light cutting action. Indicative machining range: f = 0,15–0,60 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
