Seco WNMG080408-MF3 Turning Insert TM2501
Available

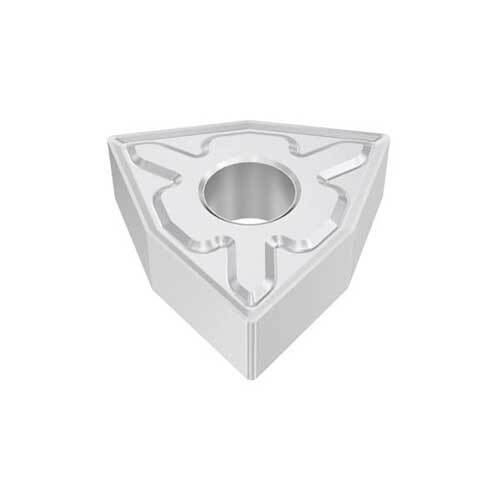

Genuine Seco 80° trigon turning insert, Grade TM2501 with MF3 chipbreaker.
Key Specifications
| Grade | TM2501 |
|---|---|
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | MF3 |
| Insert Details | G Insert Type. |
About Grade TM2501
Duratomic® grade. A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness. First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MF3 Chipbreaker
Chipbreaker with a positive cutting rake angle intended for moderately difficult stainless steel. The MF3 is also intended for light roughing in relatively soft, “tacky” steel and difficult to machine stainless steel if the depth of cut is limited. MF3 can also be used for the finishing cast iron. Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1–4 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
