Turning Insert WNMG Insert Style - MR6 | AIMS Industrial

***Illustrations shown may vary from actual product***

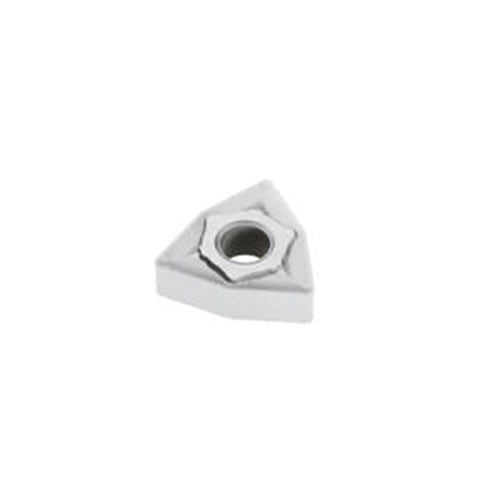

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MR6 Grade TP2501 ± 0.13/± 0.05mm Tolerance WNMG080408-MR6,TP2501 10pcs

Turning Insert WNMG Insert Style - MR6 Grade TP2501

• W shape code.
• G insert type, with hole and chip breaker on both faces.
• TP2501 insert grade.

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MR6 Chipbreaker Programme

• Chipbreaker for medium and medium roughing of steel. Very easy cutting and open geometry.
• Double and single-sided.
• Indicative machining range: f = 0,25–0,80 mm/rev, ap= 0,9–5,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
