Seco Turning Insert WCMT Insert Style - F1 7° Grade CP500
Available

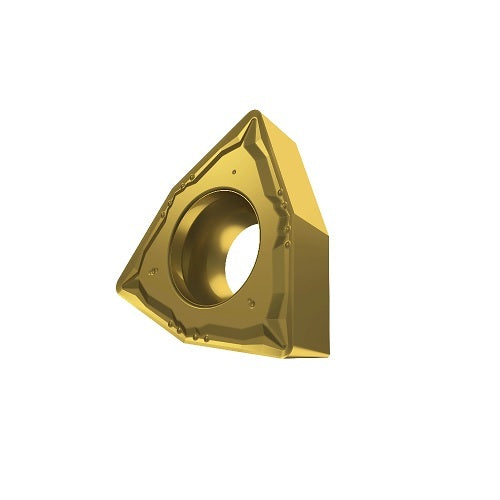

Genuine Seco 80° trigon turning insert, Grade CP500 with F1 chipbreaker.
Key Specifications
| Grade | CP500 |
|---|---|
| Substrate / Coating | Carbide PVD |
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | F1 |

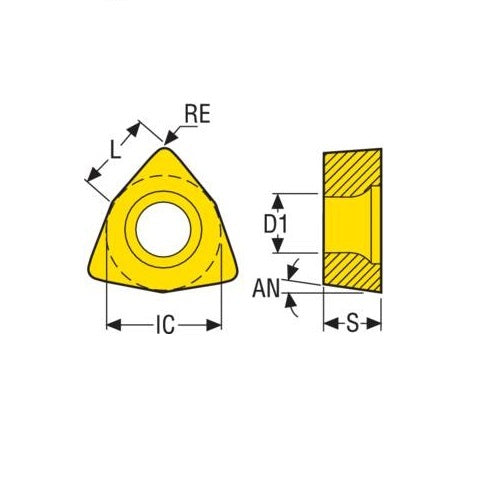

| Insert Details | W shape code. T Insert Type. 7° insert side clearance angles. |
About Grade CP500
Carbide PVD. PVD coated. Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts. (Ti, Al)N + TiN. W-
About the F1 Chipbreaker
A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish. Suitable for high feed rates at small depths of cut. Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
