***Illustrations shown may vary from actual product***

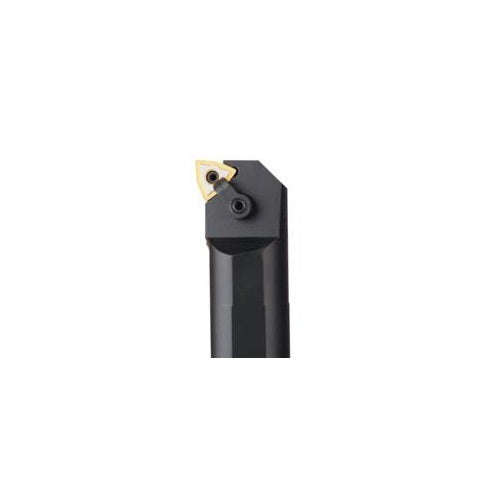

Seco Internal Turning Toolholder Solid Steel Multiple Lock 254 x 19.05 x 23.62mm Right 95° W Insert Shape S12-MWLNR-3

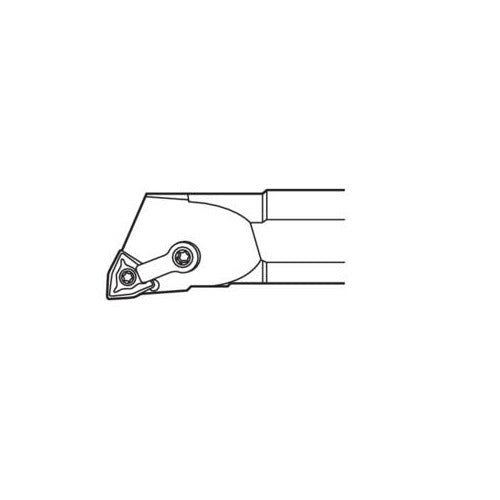

Turning Internal Toolholder (Solid Steel - Multiple Lock - L Type - W Insert Shape)

• Solid Steel.
• W insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
• L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
