Seco Internal Turning Toolholder Steel | AIMS Industrial

$493.17
$493.17
Inc. GST

Available

◆
Internal turning / boring toolholder
●
25.4 machine connection, 22 mm shank height
▲
T-shape insert compatible, Right-hand cut, 91 deg cutting edge angle

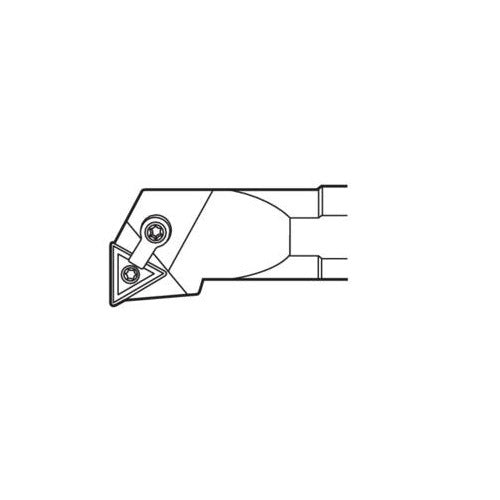

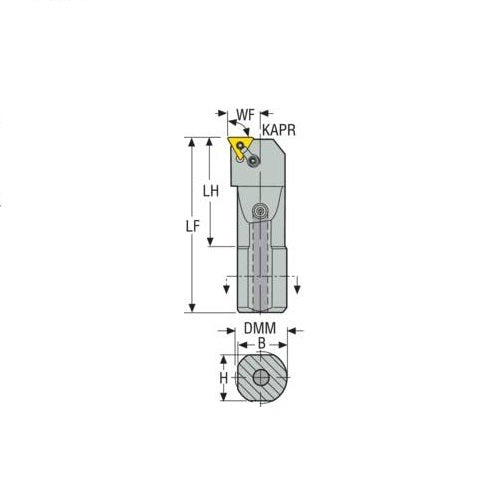

This is a Seco precision-machined internal turning toolholder engineered for production CNC and machine-shop service. The 25.4 machine-side connection and 22 mm x 23.7 mm shank match standard turret and tool-block locations. Designed for T-shape Seco inserts, right-hand cut geometry, 304.8 mm functional length, 91 deg cutting edge angle, M insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights −

This Seco precision-machined internal turning toolholder is engineered for production CNC, mill-turn and lathe service. The 25.4 machine-side shank connection matches standard turret and tool-block fitments. Built with 22 mm x 23.7 mm shank, 304.8 mm functional length. Accepts T-shape Seco inserts with the M clamping system. Right-hand cut geometry with 91 deg tool cutting edge angle. Suited to external and internal turning, profiling and finishing on production CNC lathes and mill-turn centres.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • A16-MTFNR-3mm tool holder
    Model Number: 00041090

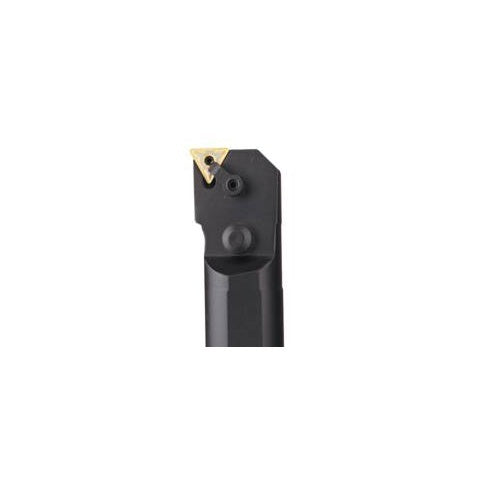

  • A20-MTFNR-3mm tool holder
    Model Number: 00041092
  • A24-MTFNR-4mm tool holder
    Model Number: 00041094
  • A32-MTFNR-4mm tool holder
    Model Number: 00041098
