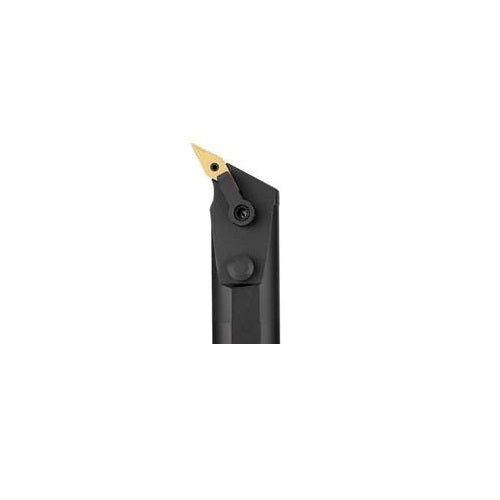

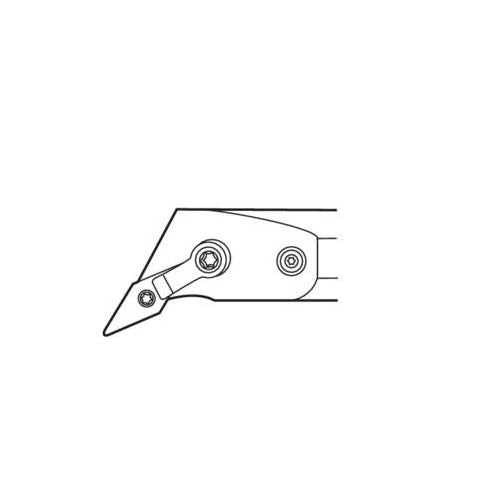

Seco Turning Internal Toolholder (Steel - Multiple Lock - P Type) Left: A20-MVPNL-3

SKU: A0114385 | Model: 00041127

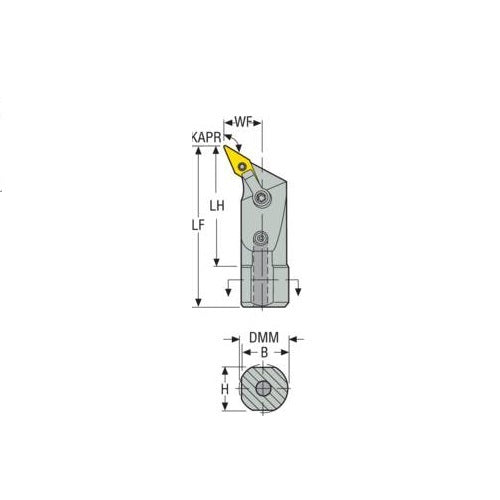

Seco Internal Turning Toolholder Steel Multiple Lock 355.6 x 31.75 x 44.45mm Left 117.5° V Insert Shape A20-MVPNL-3

Turning Internal Toolholder (Steel - Multiple Lock - P Type - V Insert Shape)

Steel with coolant passage.

V insert shape.

0° ISCA (Insert Side Clearance Angles).

Multiple lock assembly, (Pin and clamp lock) - (M-Type toolholders).

P tool type, offset shank with 27.5° side and end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.

Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.

This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.

The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
