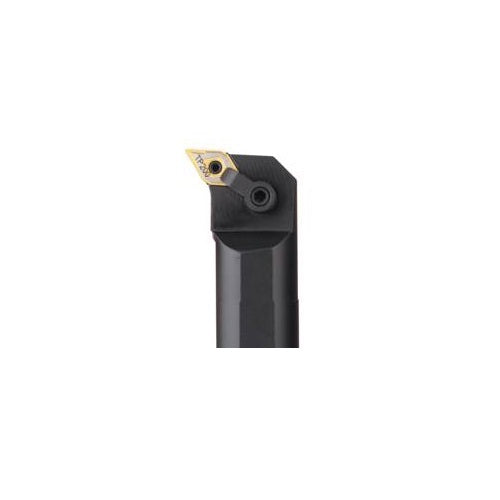

Seco Internal Turning Toolholder Steel Multiple Lock 355.6 x 38.1 x 57.15mm Left 93° D Insert Shape A24-MDUNL-4

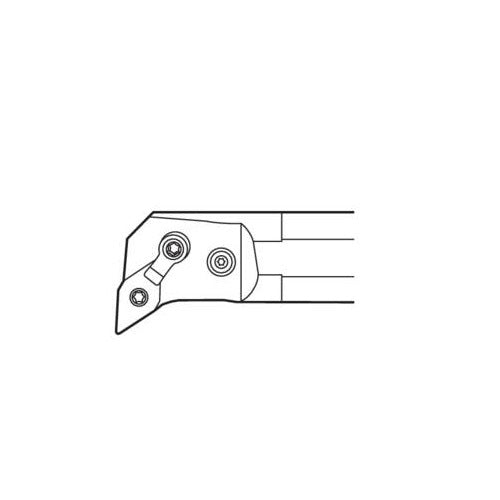

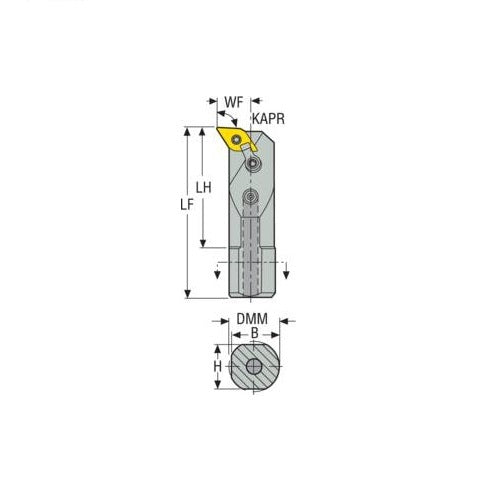

Turning Internal Toolholder (Steel - Multiple Lock - U Type - D Insert Shape)

• Steel with coolant passage.
• D insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• Multiple lock assembly, (Pin and clamp lock) - (M-Type toolholders).
• U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

>
