Seco Internal Turning Toolholder Steel | AIMS Industrial

***Illustrations shown may vary from actual product***

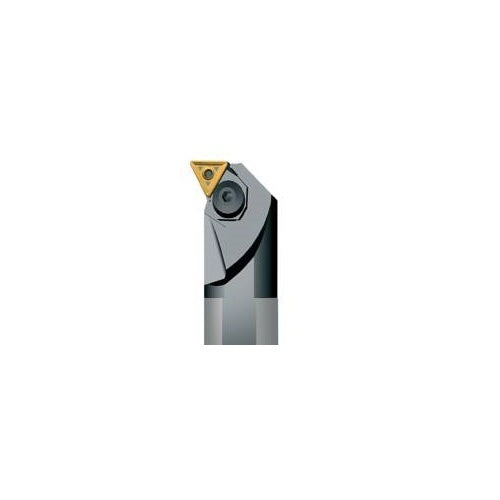

Seco Internal Turning Toolholder Steel Pin Lock 200 x 20 x 11mm Left 90° T Insert Shape A20R-PTFNL11

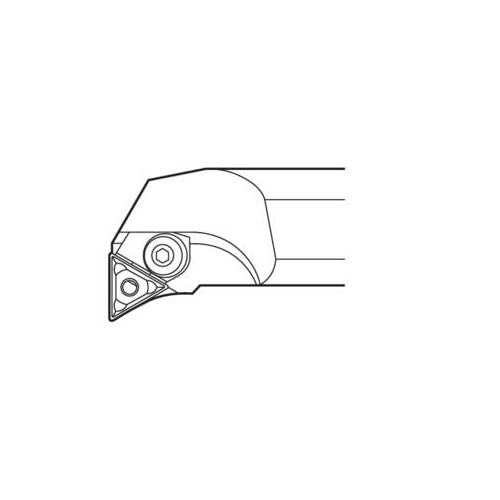

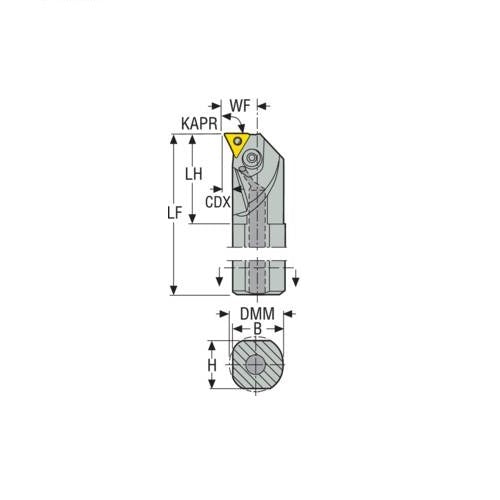

Turning Internal Toolholder (Steel - Pin Lock - F Type - T Insert Shape)

• Steel with coolant passage.
• T insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• Pin lock assembly, (NL/PL tool holders).
• F tool type, offset shank with 0° (90°) end cutting edge angle

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
