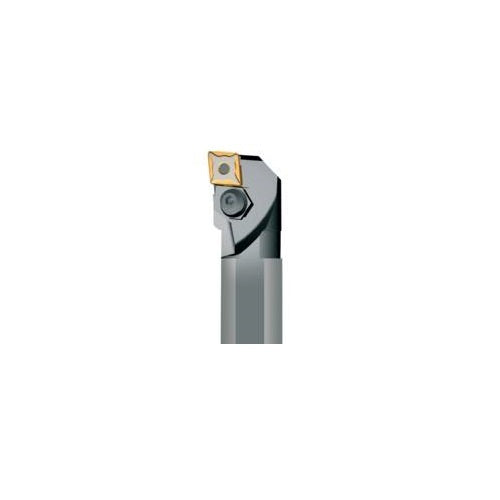

Seco Internal Turning Toolholder Steel Pin Lock 200 x 20 x 9mm Right 95° C Insert Shape A20R-PCLNR09

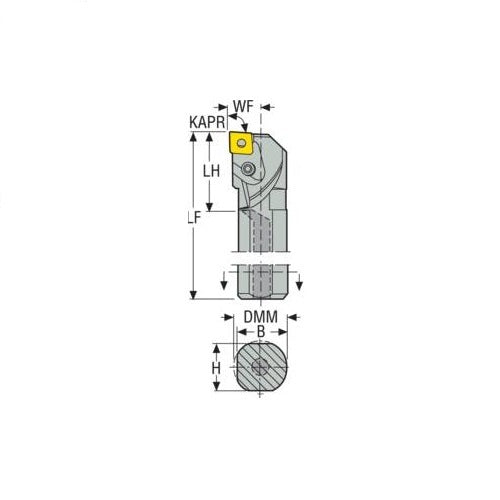

Turning Internal Toolholder (Steel - Pin Lock - L Type - C Insert Shape - 9mm Cutting Edge Length)

• Steel with coolant passage.
• C insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• 9mm cutting edge length.

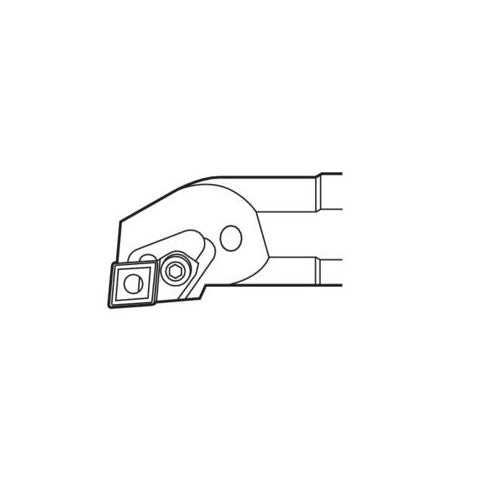

• Pin lock assembly, (NL/PL toolholders).
• L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
