Seco A25R-PVPNR13 Internal Turning Toolholder
Available
Genuine Seco Turning Internal Toolholder. This Seco internal turning toolholder is made from steel with coolant passage and clamps 35° rhombic (diamond) (ISO shape code V) inserts with a pin lock system. Tool type: P — offset shank with 27.5° side and end cutting edge angle. The insert side clearance angle is 0°. It is used on CNC and manual lathes for internal turning. This page lists 5 options.
Key Specifications
| Material | Steel with coolant passage |
|---|---|
| Locking System | Pin lock |
| Insert Shape | 35° rhombic (diamond) (ISO shape code V) |
| Tool Type | P — offset shank with 27.5° side and end cutting edge angle |
| Insert Side Clearance Angle (ISCA) | 0° |
| Cutting Edge Length | 13mm |
About Shank Toolholders and Boring Bars
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications. Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs. This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

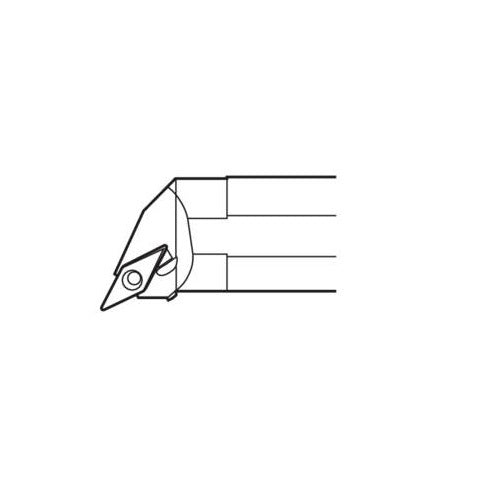

Seco Turning Internal Toolholder (Steel - Pin Lock - P Type) Right: A25R-PVPNR13
SKU: A0114489 | Model: 00091722

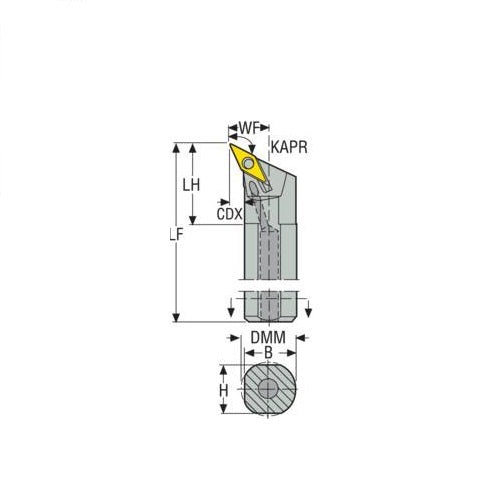

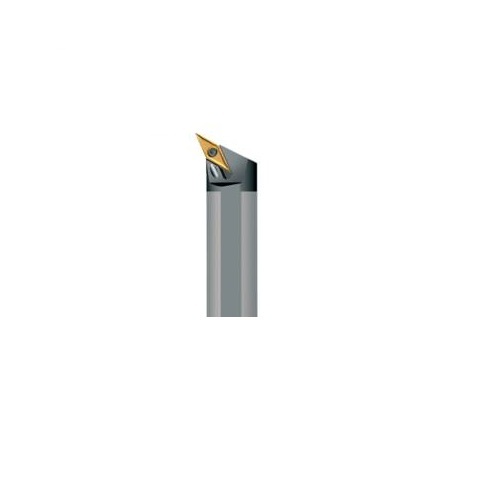

Seco Internal Turning Toolholder Steel Pin Lock 200 x 25 x 13mm Right 117.5° V Insert Shape A25R-PVPNR13
Turning Internal Toolholder (Steel - Pin Lock - P Type - V Insert Shape - 13mm Cutting Edge Length)
Steel with coolant passage.
V insert shape.
0° ISCA (Insert Side Clearance Angles).
13mm cutting edge length.
Pin lock assembly, (NL/PL tool holders).
P tool type, offset shank with 27.5° side and end cutting edge angle.
About Shank Toolholders and Boring Bars:
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
