Seco Internal Turning Toolholder Steel Pin Lock 200 x 25 x 11mm Right 107.5° D Insert Shape A25R-PDQNR11

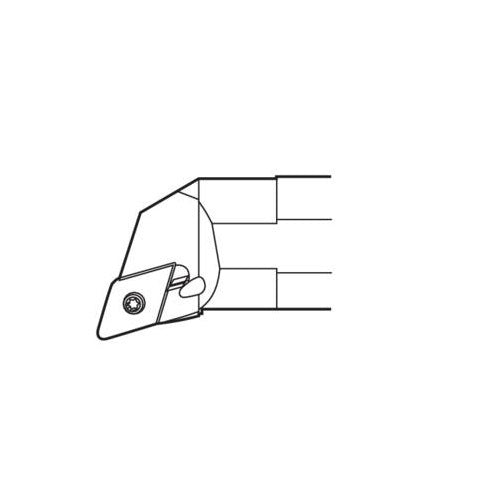

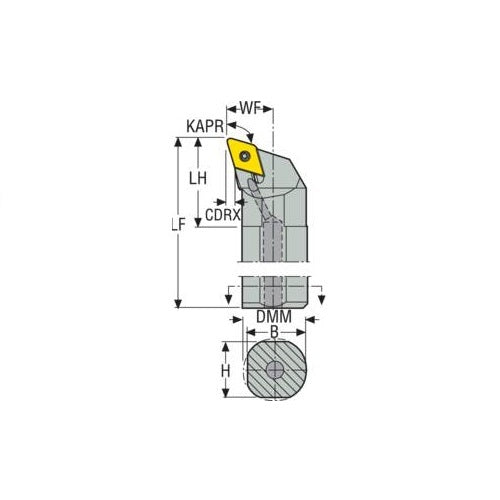

Turning Internal Toolholder (Steel - Pin Lock - Q Type - D Insert Shape)

• Steel with coolant passage.
• D insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• Pin lock assembly, (NL/PL toolholders).
• Q tool type, offset shank with negative 17.5° (107.5°) cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
