Seco Internal Turning Toolholder Steel | AIMS Industrial

$223.67
$223.67
Inc. GST

Available

◆
Internal turning / boring toolholder
●
08 machine connection, 7 mm shank height
▲
C-shape insert compatible, Left-hand cut, 91 deg cutting edge angle

This is a Seco precision-machined internal turning toolholder engineered for production CNC and machine-shop service. The 08 machine-side connection and 7 mm x 7.5 mm shank match standard turret and tool-block locations. Designed for C-shape Seco inserts, left-hand cut geometry, 125 mm functional length, 91 deg cutting edge angle, S insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights −

This Seco precision-machined internal turning toolholder is engineered for production CNC, mill-turn and lathe service. The 08 machine-side shank connection matches standard turret and tool-block fitments. Built with 7 mm x 7.5 mm shank, 125 mm functional length. Accepts C-shape Seco inserts with the S clamping system. Left-hand cut geometry with 91 deg tool cutting edge angle. Suited to external and internal turning, profiling and finishing on production CNC lathes and mill-turn centres.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:

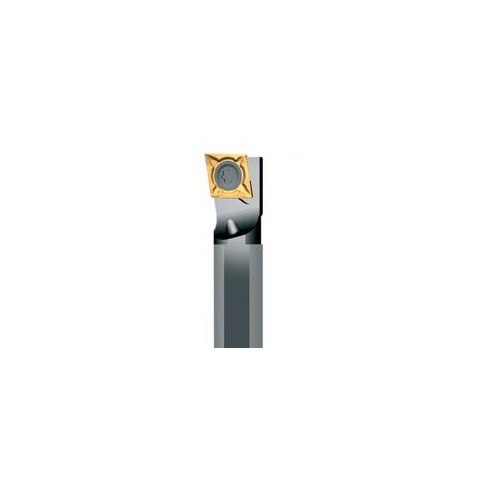

  • A08K-SCFCL06mm tool holder
    Model Number: 00093711
  • A10L-SCFCL06mm tool holder
    Model Number: 00093713
  • A12N-SCFCL09mm tool holder
    Model Number: 00093715
  • A16Q-SCFCL09mm tool holder
    Model Number: 00093717
  • A20R-SCFCL09mm tool holder
    Model Number: 00093719
