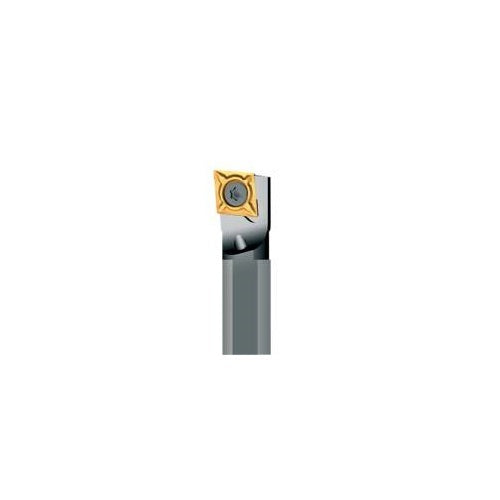

Seco A08K-SCLCR06 Internal Turning Toolholder
Available
Genuine Seco Turning Internal Toolholder. This Seco internal turning toolholder is made from steel with coolant passage and clamps 80° rhombic (diamond) (ISO shape code C) inserts with a screw lock system. Tool type: L — offset shank with negative 5° (95°) end or side cutting edge angle. The insert side clearance angle is 7°. It is used on CNC and manual lathes for internal turning. This page lists 9 options.
Key Specifications
| Material | Steel with coolant passage |
|---|---|
| Locking System | Screw lock |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Tool Type | L — offset shank with negative 5° (95°) end or side cutting edge angle |
| Insert Side Clearance Angle (ISCA) | 7° |
| Cutting Edge Length | 6mm |
About Shank Toolholders and Boring Bars
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications. Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs. This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

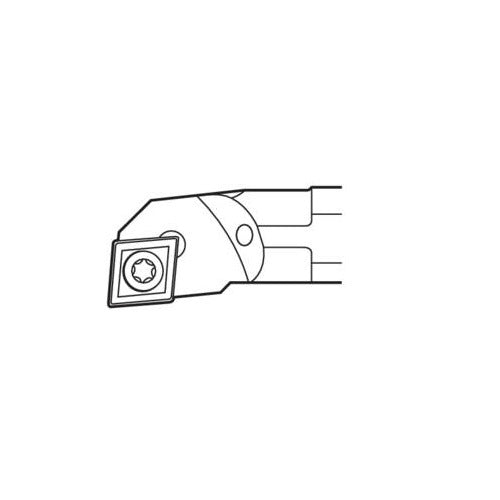

Seco Turning Internal Toolholder (Steel - Screw Lock - L Type) Right - A0114552: A08K-SCLCR06
SKU: A0114552 | Model: 02413804

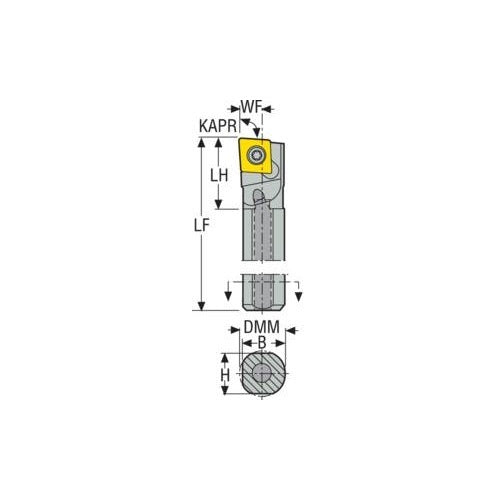

Seco Internal Turning Toolholder Steel Screw Lock 125 x 8 x 6mm Right 95° C Insert Shape A08K-SCLCR06
Turning Internal Toolholder (Steel - Screw Lock - L Type - C Insert Shape - 6mm Cutting Edge Length)
Steel with coolant passage.
C insert shape.
7° ISCA (Insert Side Clearance Angles).
Screw lock.
6mm cutting edge length.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.
About Shank Toolholders and Boring Bars:
Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
