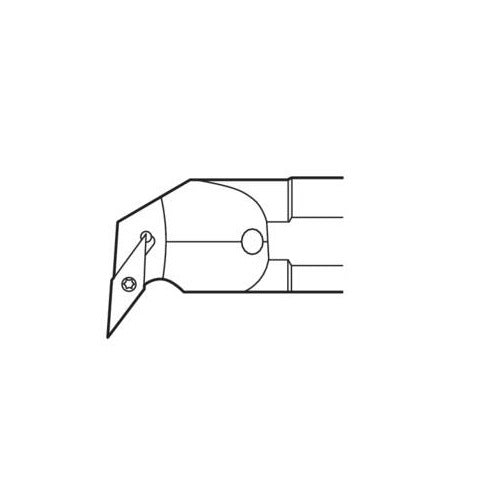

Seco Internal Turning Toolholder Steel Screw Lock 200 x 16 x 11mm Left 93° V Insert Shape A16R-SVUBL11

Turning Internal Toolholder (Steel - Screw Lock - U Type - V Insert Shape - 11mm Cutting Edge Length)

• Steel with coolant passage.
• V insert shape.
• 5° ISCA (Insert Side Clearance Angles).
• 11mm cutting edge length.
• Screw lock.
• U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
