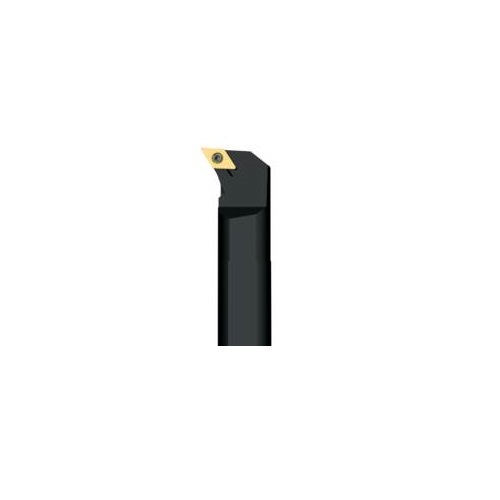

Seco Internal Turning Toolholder Steel Screw Lock 254 x 15.88 x 21.59mm Right 93° D Insert Shape A10-SDUNR-3

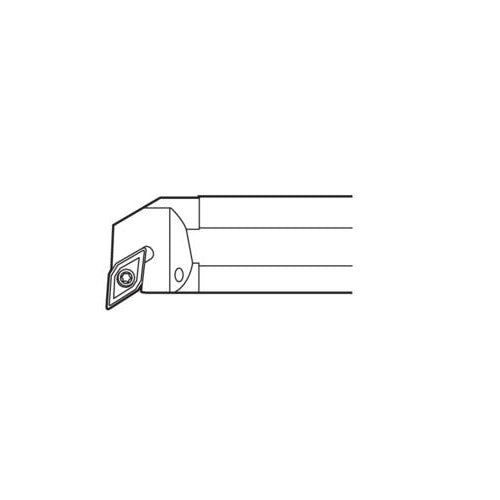

Turning Internal Toolholder (Steel - Screw Lock - U Type - D Insert Shape - 3mm Cutting Edge Length)

• Steel with coolant passage.
• D insert shape.
• 0° ISCA (Insert Side Clearance Angles).
• 3mm cutting edge length.
• Screw lock.
• U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

• Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
• Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
• This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
• The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
