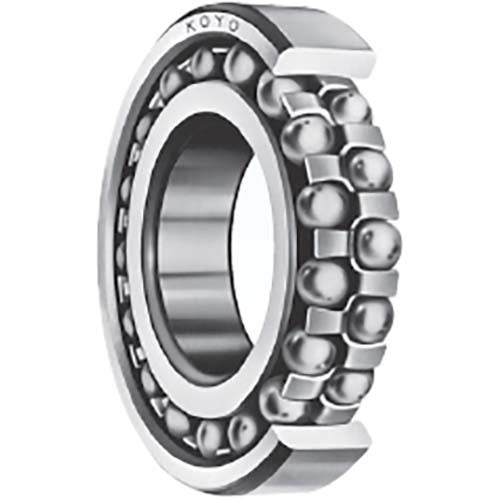

Koyo 2205 Self-Aligning Ball Bearing, Cylindrical Bore, 25 x 52 x 18 mm
Available
This Koyo self-aligning ball bearing (cylindrical bore, 2200 series) has two rows of balls running on a spherical outer ring raceway. The centre of curvature of that raceway meets that of the bearing, so the inner ring, balls and cage keep rotating and align themselves if they become misaligned within design limits. It suits applications where the shaft and housing centres are likely to be displaced, or where shaft deflection is likely.
The range has 9 sizes, with bores from 25 to 65 mm, boundary dimensions to JIS B 1512 and tolerances to JIS B 1514-1 class 0. Koyo bearings are made by JTEKT Corporation.
Where this product is used
- Power transmission shafts of woodworking and spinning machines
- Plummer blocks
- Shaft and housing arrangements where shaft deflection or misaligned mounting is likely
Features
- Spherical outer ring raceway: the inner ring, balls and cage align themselves if the shaft and housing are misaligned within design limits
- Allowable aligning angle: 0.044 rad (2.5°)
- Cylindrical bore
- Boundary dimensions to JIS B 1512, tolerances to JIS B 1514-1 class 0, radial internal clearance to JIS B 1520
- Standard cage: pressed steel, snap type
- Basic dynamic load ratings 12.6 to 43.5 kN and static 3.5 to 16.4 kN depending on size
Key specifications
| Specification | Detail |
|---|---|
| Bearing type | Self-aligning ball bearing, double row |
| Series | 2200 |
| Bore type | Cylindrical bore |
| Sealing | Open |

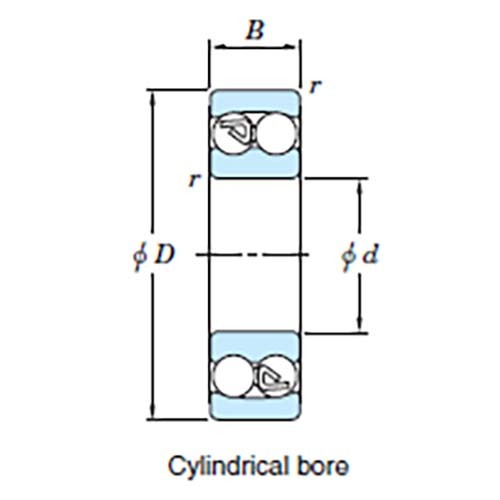

| Bore diameter d | 25 to 65 mm |
| Outside diameter D | 52 to 120 mm |
| Width B | 18 to 31 mm |
| Basic dynamic load rating Cr | 12.6 to 43.5 kN |
| Basic static load rating C0r | 3.5 to 16.4 kN |
| Limiting speed, grease lubrication | 4,900 to 12,000 min-1 |
| Limiting speed, oil lubrication | 5,900 to 15,000 min-1 |
| Mass | 0.163 to 1.46 kg |
| Allowable aligning angle | 0.044 rad (2.5°) |
| Standard cage | Pressed steel, snap type |
| Dimensions and tolerances | JIS B 1512 (boundary dimensions), JIS B 1514-1 class 0 (tolerances) |
| Radial internal clearance standard | JIS B 1520 |
| Brand | Koyo (JTEKT) |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) | r min (mm) | Cr (kN) | C0r (kN) | Speed, grease (min-1) | Speed, oil (min-1) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2205 | 25 | 52 | 18 | 1 | 12.6 | 3.5 | 12,000 | 15,000 | 0.163 |
| 2206 | 30 | 62 | 20 | 1 | 15.6 | 4.65 | 10,000 | 12,000 | 0.26 |
| 2207 | 35 | 72 | 23 | 1.1 | 21.6 | 6.6 | 8,500 | 10,000 | 0.403 |
| 2208 | 40 | 80 | 23 | 1.1 | 22.4 | 7.4 | 7,600 | 9,300 | 0.505 |
| 2209 | 45 | 85 | 23 | 1.1 | 23.3 | 8.15 | 7,000 | 8,500 | 0.545 |
| 2210 | 50 | 90 | 23 | 1.1 | 23.3 | 8.5 | 6,500 | 7,900 | 0.59 |
| 2211 | 55 | 100 | 25 | 1.5 | 26.8 | 10 | 5,800 | 7,100 | 0.81 |
| 2212 | 60 | 110 | 28 | 1.5 | 34.1 | 12.6 | 5,300 | 6,500 | 1.09 |
| 2213 | 65 | 120 | 31 | 1.5 | 43.5 | 16.4 | 4,900 | 5,900 | 1.46 |
Selecting the right option
Select by bore d first, then check the outside diameter D and width B in the table against your housing.
The allowable aligning angle is 0.044 rad (2.5°) for this range. It is set by the series: 12 and 22 series allow 0.044 rad (2.5°), 13 and 23 series 0.052 rad (3°), and the sealed 22...2RS and 23...2RS series 0.026 rad (1.5°).
Dynamic equivalent radial load is Pr = X Fr + Y Fa. When Fa/Fr is e or less, X is 1 and Y is Y1. When Fa/Fr is greater than e, X is 0.65 and Y is Y2. Static equivalent radial load is P0r = Fr + Y0 Fa. The values of e, Y1, Y2 and Y0 for each size are in the variant specification.
Compare the limiting speed for your size with the shaft speed. Both grease and oil lubrication limits are shown.
Fitting and use

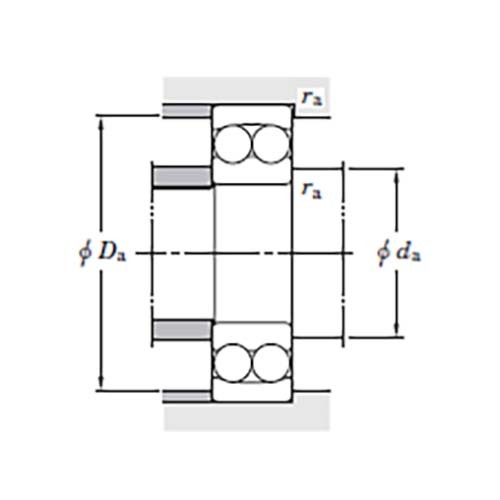

Check the mounting dimensions in the variant specification: the shaft shoulder diameter da, housing shoulder diameter Da and fillet radius ra give the shoulder sizes and radius limits for the mating parts.
Keep the misalignment within the allowable aligning angle for the series. Beyond it, the bearing is no longer working within its design limits.
Related products
Also available from Koyo: the 2200 series tapered bore range, the 1200 series cylindrical bore range, the 1300 series cylindrical bore range and the 22 and 23 series sealed range.
