NSK 1305K Self Aligning Ball Bearing, Tapered Bore 25 x 62 x 17 mm
Available
This NSK range covers 3 double row self-aligning ball bearings with a tapered bore (1:12 taper): the 1305K, 1212K and 2220K, from 25 to 100 mm bore and 62 to 180 mm outer diameter. Select the size from the drop-down: each size has its own bearing number, dimensions, load ratings and limiting speeds in the Model Details.

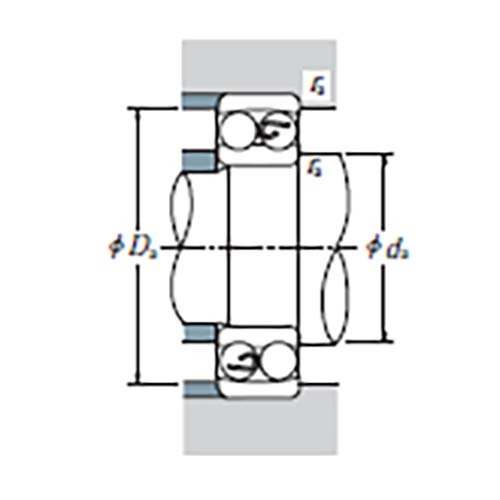

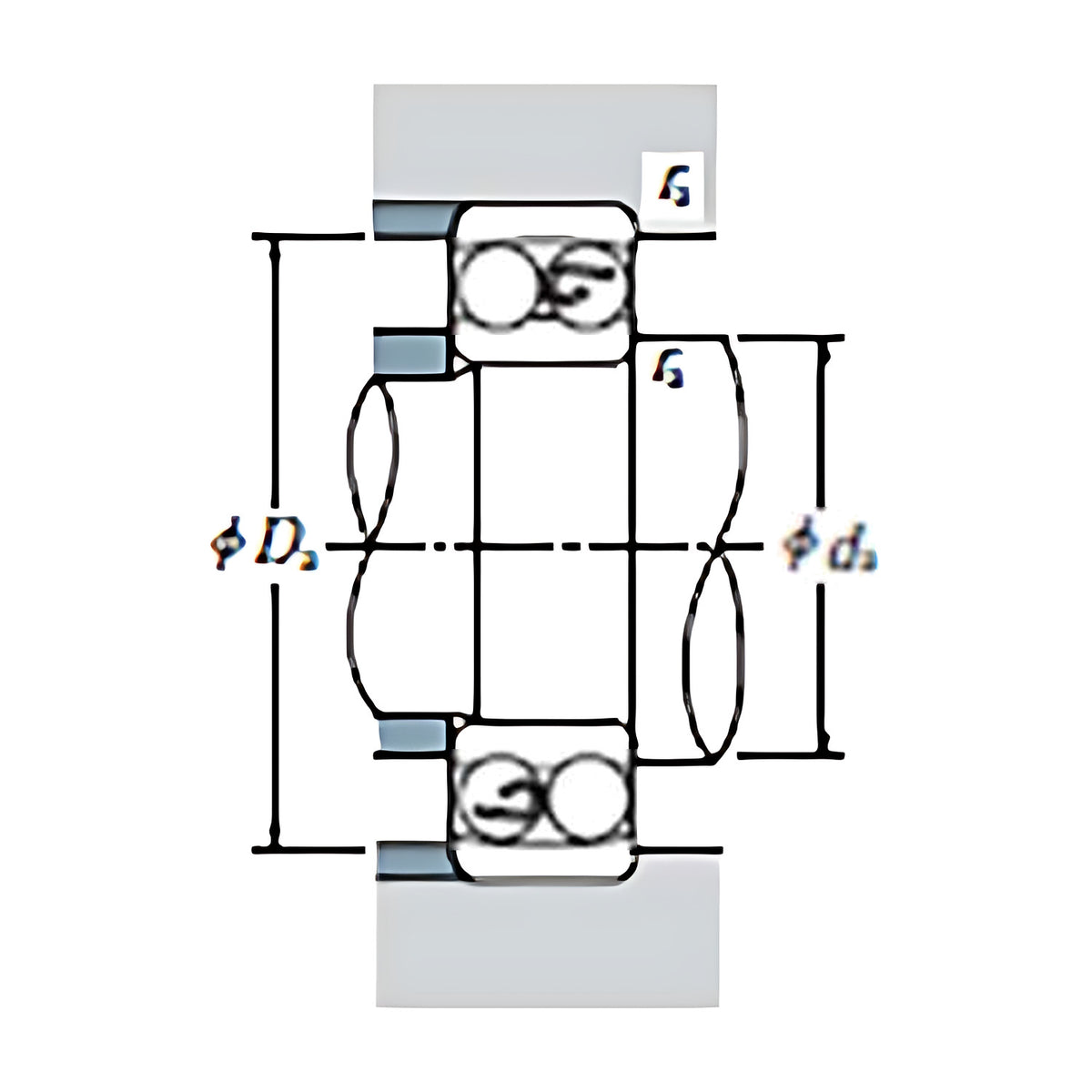

Self aligning ball bearings have a spherical outer ring raceway, so the inner ring, balls and cage can swing to take up small angular misalignment between shaft and housing. They suit long shafts, shafts that deflect under load and housings that cannot be bored in line. The tapered bore (K, 1:12 taper) mounts on a tapered shaft seat or on an adapter or withdrawal sleeve over a plain shaft.
Where this product is used
- Conveyor pulleys and idler rolls
- Fans, blowers and agricultural machinery
- Line shafting and general industrial machinery where the shaft or housing may deflect
Features
- Double row design with a spherical outer ring raceway, so the bearing tolerates small angular misalignment between shaft and housing
- Tapered bore (K, 1:12 taper) for mounting on a tapered shaft seat or on an adapter or withdrawal sleeve over a plain shaft
- Basic dynamic load ratings 20 to 104 kN and static load ratings 5 to 38.5 kN across the range
- Limiting speeds of 3,200 to 10,000 rpm on grease and 3,800 to 13,000 rpm on oil, depending on size
Key specifications
| Specification | Detail |
|---|---|
| Type | Double row self-aligning ball bearing |
| Bearing numbers | 3: 1305K, 1212K and 2220K |
| Bore d | 25 to 100 mm |
| Outer diameter D | 62 to 180 mm |
| Width B | 17 to 46 mm |

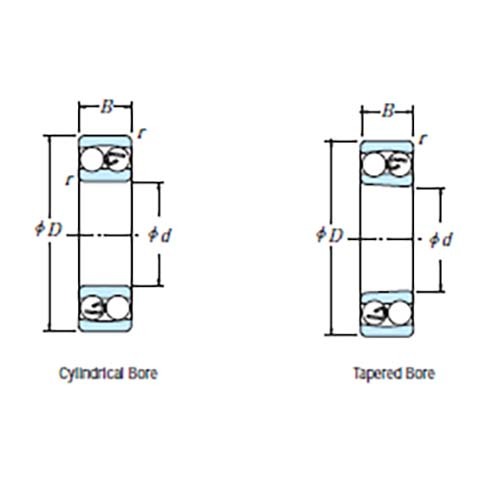

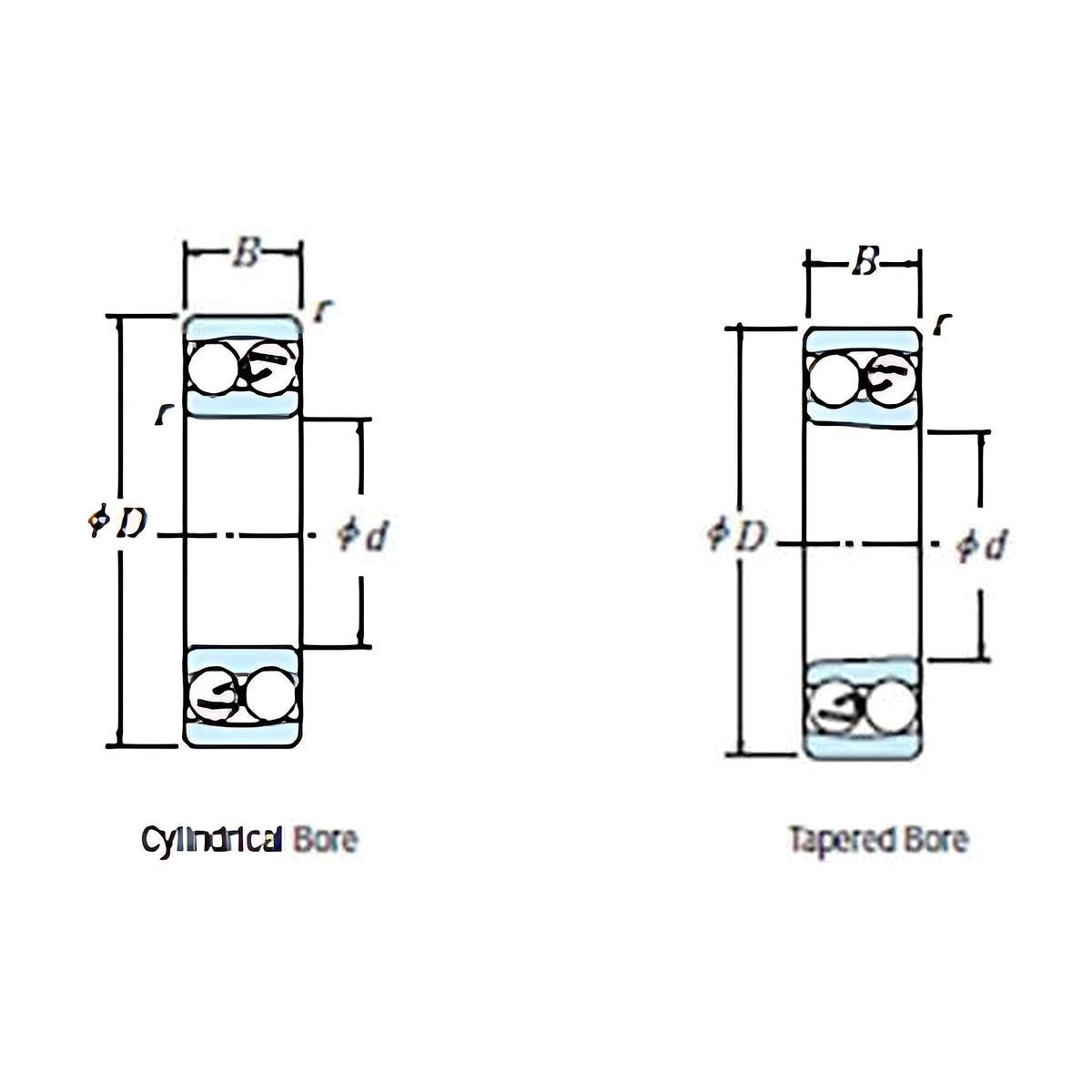

| Bore type | Tapered bore (1:12 taper) |
| Radial internal clearance | Normal (CN) |
| Basic dynamic load rating Cr | 20 to 104 kN |
| Basic static load rating Cor | 5 to 38.5 kN |
Available sizes
| Model | Size d x D x B (mm) | Cr (kN) | Cor (kN) | Limiting speed, grease (rpm) | Limiting speed, oil (rpm) | Mass (kg) |
|---|---|---|---|---|---|---|
| 1305K | 25 x 62 x 17 | 20 | 5 | 10,000 | 13,000 | 0.255 |
| 1212K | 60 x 110 x 22 | 33.5 | 11.5 | 5,300 | 6,300 | 0.9 |
| 2220K | 100 x 180 x 46 | 104 | 38.5 | 3,200 | 3,800 | 4.51 |
Selecting the right option
A tapered bore (K, 1:12 taper) mounts on a tapered shaft seat or on an adapter or withdrawal sleeve over a plain shaft. The sleeve is ordered separately, and the taper lets the internal clearance be set during fitting.
Fitting and use
Check the load and speed against the figures for your size before ordering and apply a suitable safety factor. Self aligning bearings carry radial load and a light axial load in either direction, and the misalignment they accept is small, so heavy axial loads and large deflections should be checked with AIMS before ordering.
Fit the bearing by pressing on the ring that is being fitted, never through the balls. On a tapered bore, drive the inner ring up the taper (or tighten the sleeve) while checking the internal clearance, and stop at the clearance reduction the application calls for.
Related products
Also available from NSK: the cylindrical bore range and the same tapered bore range with C3 clearance.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

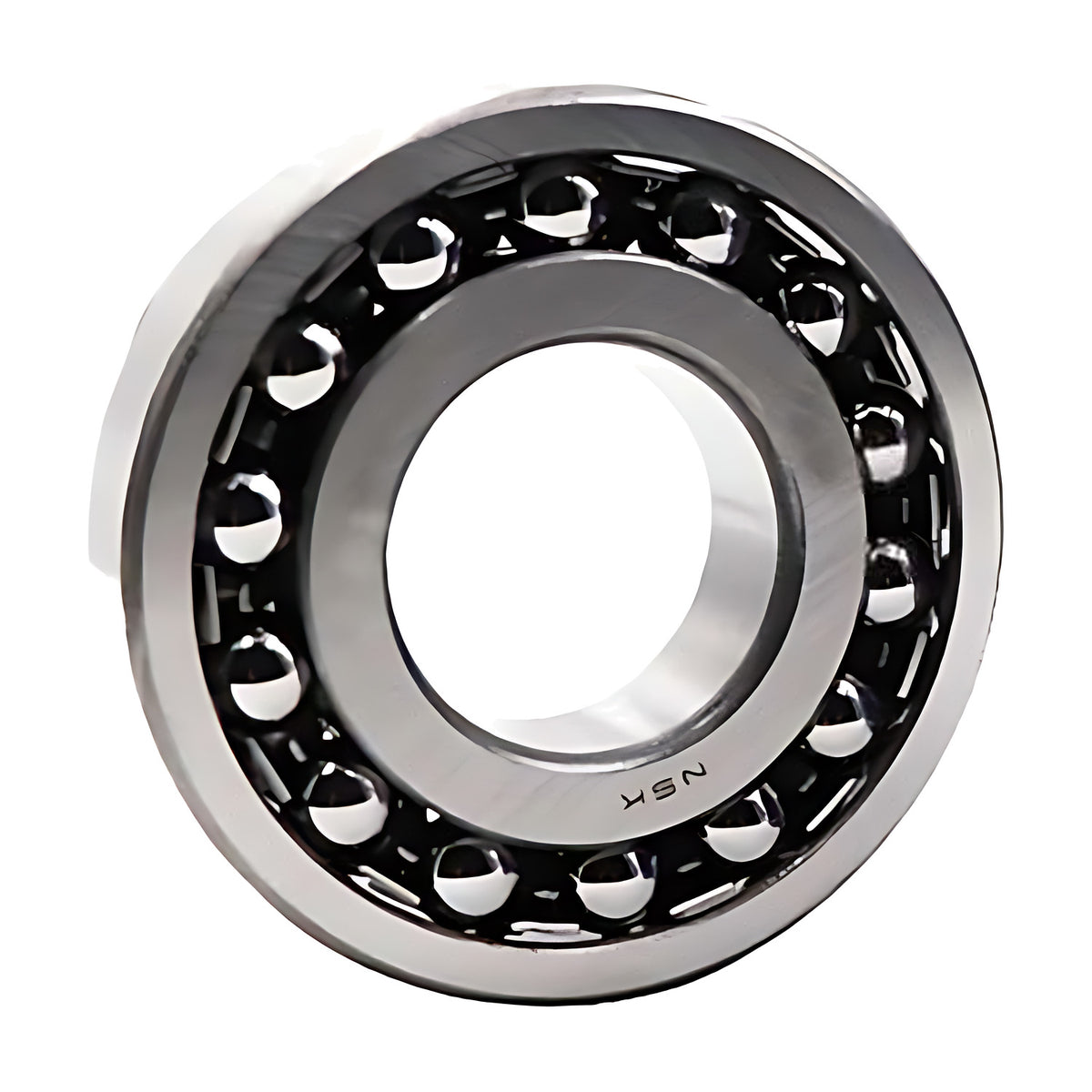

25 x 62 x 17mm bearing
Model Number: 1305K/NSK
-
60 x 110 x 22mm bearing
Model Number: 1212K/NSK
-

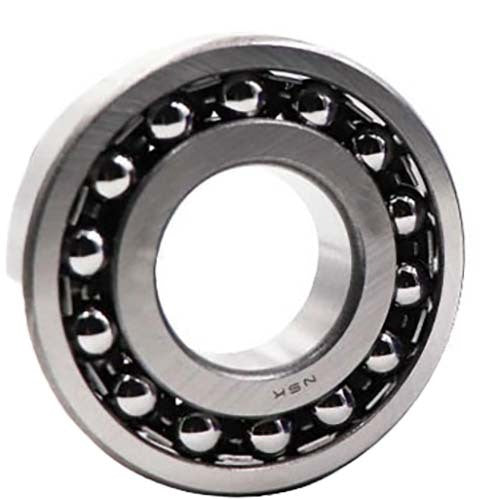

100 x 180 x 46mm bearing
Model Number: 2220K/NSK
