Koyo 1305K Self-Aligning Ball Bearing, Tapered Bore (K), 25 x 62 x 17 mm
Available

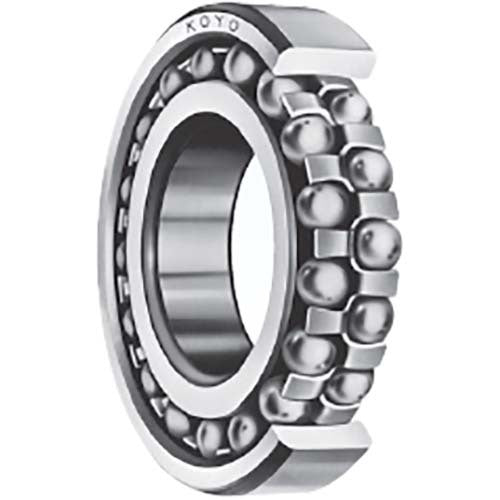

This Koyo self-aligning ball bearing (tapered bore, 1300 series) has two rows of balls running on a spherical outer ring raceway. The centre of curvature of that raceway meets that of the bearing, so the inner ring, balls and cage keep rotating and align themselves if they become misaligned within design limits. It suits applications where the shaft and housing centres are likely to be displaced, or where shaft deflection is likely. The tapered bore (taper 1:12) lets the bearing be fitted to the shaft with an adapter assembly.
The range has 9 sizes, with bores from 25 to 65 mm, boundary dimensions to JIS B 1512 and tolerances to JIS B 1514-1 class 0. Koyo bearings are made by JTEKT Corporation.
Where this product is used
- Power transmission shafts of woodworking and spinning machines
- Plummer blocks
- Shaft and housing arrangements where shaft deflection or misaligned mounting is likely
Features
- Spherical outer ring raceway: the inner ring, balls and cage align themselves if the shaft and housing are misaligned within design limits
- Allowable aligning angle: 0.052 rad (3°)

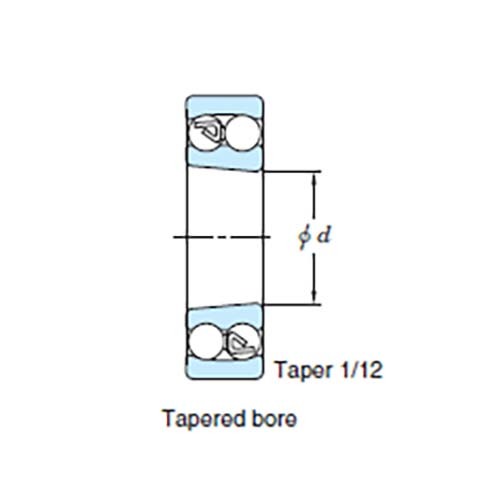

- Tapered bore (taper 1:12), fitted to the shaft with an adapter assembly
- Boundary dimensions to JIS B 1512, tolerances to JIS B 1514-1 class 0, radial internal clearance to JIS B 1520
- Standard cage: pressed steel, staggered type
- Basic dynamic load ratings 18 to 61.7 kN and static 5 to 22.9 kN depending on size
Key specifications
| Specification | Detail |
|---|---|
| Bearing type | Self-aligning ball bearing, double row |
| Series | 1300 |
| Bore type | Tapered bore, taper 1:12 (K) |
| Sealing | Open |
| Bore diameter d | 25 to 65 mm |
| Outside diameter D | 62 to 140 mm |
| Width B | 17 to 33 mm |
| Basic dynamic load rating Cr | 18 to 61.7 kN |
| Basic static load rating C0r | 5 to 22.9 kN |
| Limiting speed, grease lubrication | 4,300 to 9,900 min-1 |
| Limiting speed, oil lubrication | 5,200 to 12,000 min-1 |
| Mass | 0.252 to 2.41 kg |
| Allowable aligning angle | 0.052 rad (3°) |
| Standard cage | Pressed steel, staggered type |
| Dimensions and tolerances | JIS B 1512 (boundary dimensions), JIS B 1514-1 class 0 (tolerances) |
| Radial internal clearance standard | JIS B 1520 |
| Brand | Koyo (JTEKT) |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) | r min (mm) | Cr (kN) | C0r (kN) | Speed, grease (min-1) | Speed, oil (min-1) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1305K | 25 | 62 | 17 | 1.1 | 18 | 5 | 9,900 | 12,000 | 0.252 |
| 1306K | 30 | 72 | 19 | 1.1 | 21.3 | 6.3 | 8,700 | 11,000 | 0.381 |
| 1307K | 35 | 80 | 21 | 1.5 | 25.1 | 7.85 | 7,600 | 9,300 | 0.502 |
| 1308K | 40 | 90 | 23 | 1.5 | 29.5 | 9.7 | 6,900 | 8,400 | 0.704 |
| 1309K | 45 | 100 | 25 | 1.5 | 38.1 | 12.7 | 6,100 | 7,500 | 0.942 |
| 1310K | 50 | 110 | 27 | 2 | 43.4 | 14.1 | 5,600 | 6,800 | 1.19 |
| 1311K | 55 | 120 | 29 | 2 | 51.3 | 17.9 | 5,000 | 6,200 | 1.56 |
| 1312K | 60 | 130 | 31 | 2.1 | 57.2 | 20.8 | 4,500 | 5,500 | 1.93 |
| 1313K | 65 | 140 | 33 | 2.1 | 61.7 | 22.9 | 4,300 | 5,200 | 2.41 |
Selecting the right option
Select by bore d first, then check the outside diameter D and width B in the table against your housing.
The allowable aligning angle is 0.052 rad (3°) for this range. It is set by the series: 12 and 22 series allow 0.044 rad (2.5°), 13 and 23 series 0.052 rad (3°), and the sealed 22...2RS and 23...2RS series 0.026 rad (1.5°).
Dynamic equivalent radial load is Pr = X Fr + Y Fa. When Fa/Fr is e or less, X is 1 and Y is Y1. When Fa/Fr is greater than e, X is 0.65 and Y is Y2. Static equivalent radial load is P0r = Fr + Y0 Fa. The values of e, Y1, Y2 and Y0 for each size are in the variant specification.
Compare the limiting speed for your size with the shaft speed. Both grease and oil lubrication limits are shown.
The K suffix means a tapered bore with a 1:12 taper. Match the shaft, adapter assembly and bearing as a set, and confirm the adapter size before ordering.
Fitting and use

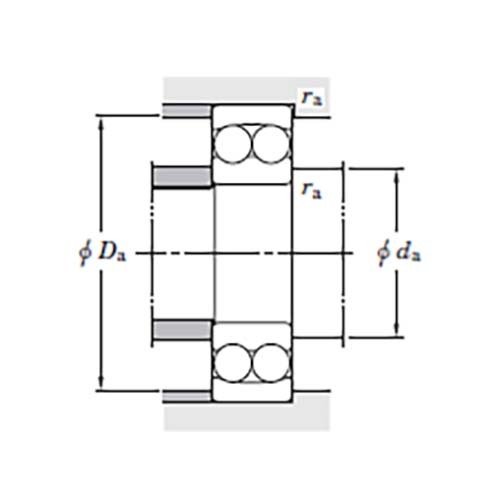

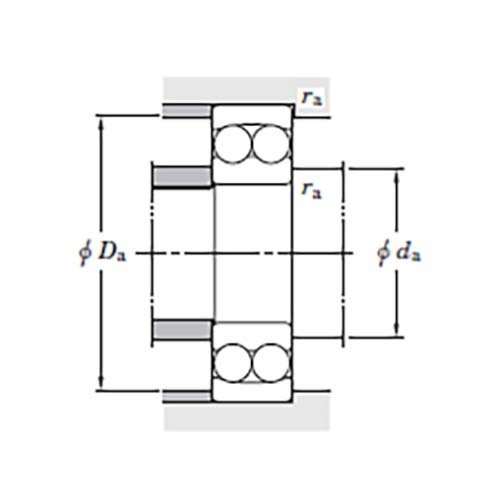

Check the mounting dimensions in the variant specification: the shaft shoulder diameter da, housing shoulder diameter Da and fillet radius ra give the shoulder sizes and radius limits for the mating parts.
Keep the misalignment within the allowable aligning angle for the series. Beyond it, the bearing is no longer working within its design limits.
Related products
Also available from Koyo: the 1300 series cylindrical bore range, the 1200 series tapered bore range and the 2200 series tapered bore range.
