Finer Power shaft Collar, 6mm
Available
These are two-piece split clamp type shaft collars in metric sizes FSC-6-SP to FSC-50-SP, for shafts with a bore from 6 to 50mm. A shaft collar is a ring-shaped component used as a mechanical stop, a locating component or a bearing face. A clamp type collar holds the shaft by clamping, so it does not mar the shaft.

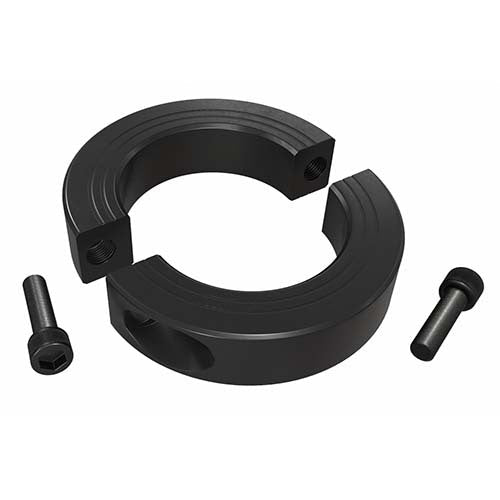

A two-piece collar is made in two halves that are joined by clamp screws around the shaft, so it can be fitted and removed without disturbing other components on the shaft.
Where this product is used
- Locating gears, sprockets, pulleys and bearings along a shaft
- Mechanical stops and bearing faces where the shaft must not be marked
- Shaft spacers and positioning collars on machinery
- General machinery assembly and maintenance
Features
- Clamp type collar that does not mar the shaft
- Single point faced
- Two-Piece split design
- Steel with a black oxide finish
- 17 metric sizes, bores 6 to 50mm
Key specifications
| Specification | Detail |
|---|---|
| Sizes | FSC-6-SP to FSC-50-SP (17 models) |
| Type | Two-Piece split clamp type shaft collar |
| Material | Steel, black oxide finish |
| System | Metric |
| Bore range | 6 to 50mm |
| Outside diameter | 16 to 78mm |
| C | 20.8 to 84.7mm |
| Width | 9 to 19mm |
| Width tolerance | +0.08 to -0.25mm |
Sizes available
| Part number | Bore (mm) | O.D. (mm) | C (mm) | Width (mm) |
|---|---|---|---|---|
| FSC-6-SP | 6 | 16 | 20.8 | 9 |
| FSC-8-SP | 8 | 18 | 22.4 | 9 |
| FSC-10-SP | 10 | 24 | 26.3 | 9 |
| FSC-12-SP | 12 | 28 | 32 | 11 |
| FSC-14-SP | 14 | 30 | 33.7 | 11 |
| FSC-16-SP | 16 | 34 | 39.3 | 13 |
| FSC-20-SP | 20 | 40 | 47.4 | 15 |
| FSC-22-SP | 22 | 42 | 49.5 | 15 |
| FSC-25-SP | 25 | 45 | 52.1 | 15 |
| FSC-28-SP | 28 | 48 | 54.7 | 15 |
| FSC-30-SP | 30 | 54 | 59.2 | 15 |
| FSC-32-SP | 32 | 54 | 59.2 | 15 |
| FSC-35-SP | 35 | 57 | 62.4 | 15 |
| FSC-38-SP | 38 | 60 | 65.6 | 15 |
| FSC-40-SP | 40 | 60 | 65.6 | 15 |
| FSC-45-SP | 45 | 73 | 80.1 | 19 |
| FSC-50-SP | 50 | 78 | 84.7 | 19 |
Choosing the right option

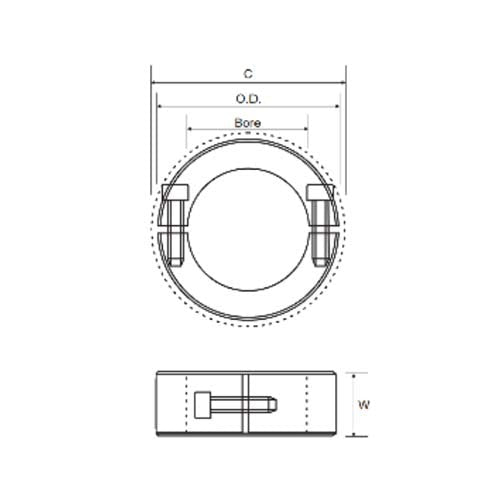

Choose the collar by shaft diameter. C is the overall size across the clamp.
The one-piece version of this collar is on Shaft Collar, One-Piece Split Clamp Type, Black Oxide Steel, Metric, FSC-6-CL to FSC-50-CL. For a collar that locks with a grub screw, see Shaft Collar, Zinc Plated Steel, Set Screw Type, Metric, FSC-6 to FSC-50 or Shaft Collar, 304 Stainless Steel, Set Screw Type, Metric, SSFSC-10 to SSFSC-50.
Slide the collar onto the shaft, set its position and tighten the clamp screw evenly. Because the collar clamps the shaft, it does not need a grub screw to bite into the surface.
| Option | Part number | SKU |
|---|---|---|
| 6mm | FSC-6-SP | A0150538 |
| 8mm | FSC-8-SP | A0150539 |
| 10mm | FSC-10-SP | A0150540 |
| 12mm | FSC-12-SP | A0150541 |
| 14mm | FSC-14-SP | A0150542 |
| 16mm | FSC-16-SP | A0150543 |
| 20mm | FSC-20-SP | A0150544 |
| 22mm | FSC-22-SP | A0150545 |
| 25mm | FSC-25-SP | A0150546 |
| 28mm | FSC-28-SP | A0150547 |
| 30mm | FSC-30-SP | A0150548 |
| 32mm | FSC-32-SP | A0150549 |
| 35mm | FSC-35-SP | A0150550 |
| 38mm | FSC-38-SP | A0150551 |
| 40mm | FSC-40-SP | A0150552 |
| 45mm | FSC-45-SP | A0150553 |
| 50mm | FSC-50-SP | A0150554 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaft Collar, Two-Piece Split Clamp Type, Black Oxide Steel, Metric, FSC-6-SP to FSC-50-SP: 6 mm
SKU: A0150538 | Model: FSC-6-SP
FSC-6-SP two-piece split clamp type shaft collar, black oxide steel, 6mm bore, 16mm outside diameter.
