Shaviv SH25129050 F20 Countersink Deburring Tool For Hole up to 20mm
Available

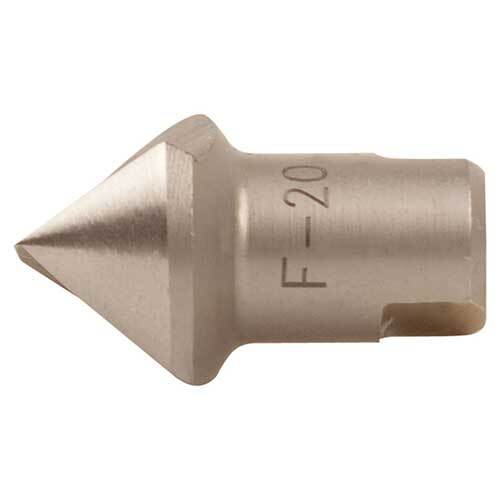

The Shaviv F20 is a replacement countersink blade for deburring and chamfering the edges of holes up to 20mm across. It is the blade only, so you need a Shaviv F holder and a handle to use it. The F12 suits holes up to 12mm and the F30 up to 30mm.
A countersink is a cone-shaped cutter that puts a small bevel, called a chamfer, on the edge of a hole. The F20 for steel, aluminium, copper, brass, cast iron, stainless steel and plastics. It fits the F holder or the FR ratchet holder, which Shaviv makes for all F blades, and the holder mounts on the Mango II long-reach handle, the Classic Handle A or the aluminium handle. The F20 is the blade supplied in the Mango II Set F.
Where this product is used
- Chamfering and deburring hole edges up to 20mm
- Deburring hole edges in steel, aluminium, copper, brass, cast iron, stainless steel and plastics
Features
- F20 countersink blade for hole edges up to 20mm
- Blade only: needs an F holder and a handle
- Fits the F holder or the FR ratchet holder, both for all F blades
- Holder mounts on the Mango II long-reach, Classic Handle A or aluminium handle
- Suits steel, aluminium, copper, brass, cast iron, stainless steel and plastics
- Chamfers and deburrs hole edges
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shaviv |
| Model | F20 countersink blade |
| Part number | SH25129050 |
| Type | Countersink blade, hole edge |
| Hole size | Hole edges up to 20mm |
| Application | Hole edge |
| Materials | Steel, aluminium, copper, brass, cast iron, stainless steel, plastics |
| Fits | F holder or FR ratchet holder |
Supplied with
- F20 countersink blade only. The F holder and a handle are sold separately
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaviv SH25129050 F20 Countersink Deburring Tool For Hole up to 20mm
SKU: A0132564 | Model: SH25129050
The F20 is the Shaviv countersink blade for hole edges up to 20mm. It is the blade only and fits the F holder or FR ratchet holder.
