Shaviv SH25500162 Mango IIE+5 Extra Close Deburring Set (5 Blade)
Available

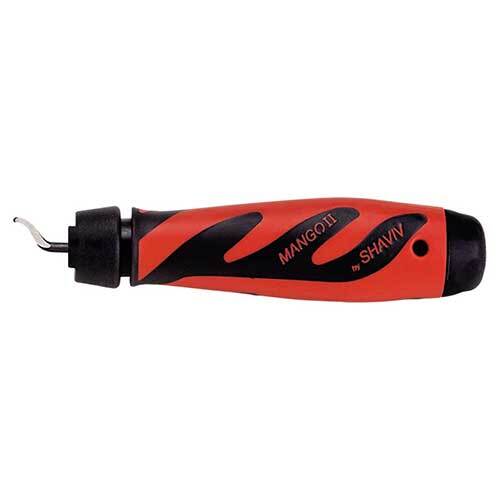

The Shaviv Mango IIE+5 is a hand deburring set for taking burrs and sharp edges off straight edges and hole edges. It has the Mango IIE handle and five E blades, so it covers most jobs without extra buying. The IIE sets deburr steel, aluminium, copper, brass, cast iron and plastics.
"Extra-close" means the blade fits straight into the handle with no holder, so the tool is short and easy to control. The five blades are the E100 for general edges and holes, the E111 for small holes down to 1.5mm (0.06"), the E120 and E200 for materials with powdery chips, and the E300, which deburrs the inside and outside of a hole in one pass in material up to 6mm (0.24") thick. Spiral chips are long curls of swarf. Powdery chips are fine, dust-like swarf. HSS is high-speed steel, the standard blade steel for general deburring. If you only need the basics, the Mango IIE+1 has just the E100 and the IIE+3 adds the E200 and E300. The IIE+5 adds the E111 for small holes and the E120.
Where this product is used
- Deburring straight edges and hole edges on steel, aluminium, copper, brass, cast iron and plastics
- Deburring small holes down to 1.5mm (0.06") with the E111 blade
- Deburring both sides of a hole in one pass with the E300 blade
- Finishing materials that make spiral chips or powdery chips
Features
- Mango IIE extra-close handle with 5 E blades: E100, E111, E120, E200, E300
- Deburrs straight edges and hole edges
- Handle takes any E or B series blade, so you can add blades later
- Permanent adapters make blade changes simple
- Comfortable, ergonomic handle for standard-sized hands
- E111 blade is thin-nosed for holes down to 1.5mm (0.06")
- E120 and E200 suit materials with powdery chips and cut in both directions
- E300 deburrs the inside and outside of a hole in one pass, up to 6mm (0.24") thick
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shaviv |
| Model | Mango IIE+5 |
| Part number | SH25500162 |
| Type | Hand deburring set, extra-close |
| Handle | Mango IIE extra-close handle |
| Blades (5) | E100, E111, E120, E200, E300 |
| Blade size | E blades, 3.2mm diameter |
| Applications | Straight edge, hole edge |
| Small holes | E111 blade, down to 1.5mm (0.06") |
| Both sides of a hole | E300 blade, material up to 6mm (0.24") thick |
| Materials | Steel, aluminium, copper, brass, cast iron, plastics |
Supplied with
- Mango IIE extra-close handle
- E100, E111, E120, E200, E300 blades
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaviv SH25500162 Mango IIE+5 Extra Close Deburring Set (5 Blade)
SKU: A0132548 | Model: SH25500162
The Mango IIE+5 is the five-blade set in the Mango IIE range. You get the Mango IIE handle and the E100, E111, E120, E200 and E300 blades, which cover general edges, small holes down to 1.5mm (0.06"), powdery-chip materials and both sides of a hole in one pass.
