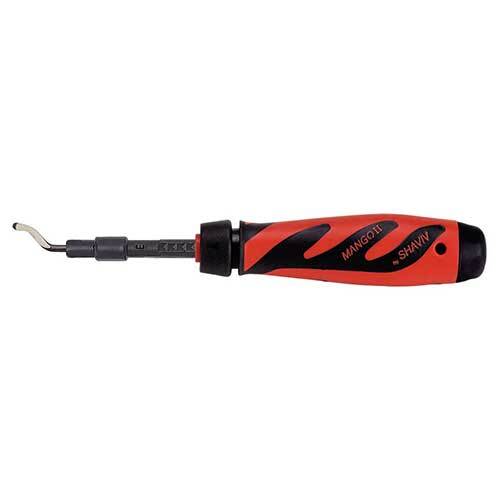

Shaviv SH25590065 Long Reach Heavy DeBurr Deburring Tool
Available
The Shaviv Mango II Set E, called the Heavy DeBurr, is a long-reach hand deburring set for heavy-duty deburring of holes, slots and edges. It has a Mango II long-reach handle, an E holder and three E blades: the E100, E200 and E300. It deburrs straight edges, hole edges and cross-holes on both edges.
In a long-reach set the blade sits in a holder on the handle instead of fitting straight into it, so it reaches further into the part. The E holder takes all E blades, which are the heavy-duty 3.2mm size. The E100 is for materials with spiral chips, the E200 is for materials with powdery chips, and the E300 deburrs the inside and outside of a hole in one pass in material up to 6mm (0.24") thick. Spiral chips are long curls of swarf. Powdery chips are fine, dust-like swarf. HSS is high-speed steel, the standard blade steel for general deburring. If you would rather have the same three blades fitted straight into a handle, the Mango IIE+3 is the extra-close version.
Where this product is used
- Heavy-duty deburring of holes, slots and edges
- Deburring cross-holes on both edges
- Reaching into parts where a short handle will not fit
Features
- Long-reach set: Mango II handle, E holder and three E blades
- Blades: E100, E200 and E300
- E holder takes all E blades, 3.2mm diameter
- Deburrs straight edges, hole edges and cross-holes on both edges
- E300 deburrs the inside and outside of a hole in one pass, up to 6mm (0.24") thick
- E200 suits materials with powdery chips and cuts in both directions
- Mango II handle works with all Shaviv holders and has a simple holder mechanism
- Comfortable, ergonomic handle for standard-sized hands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shaviv |
| Model | Mango II Set E, Heavy DeBurr |
| Part number | SH25590065 |
| Type | Hand deburring set, long-reach |
| Handle | Mango II long-reach handle |
| Holder | E holder, takes all E blades |
| Blades (3) | E100, E200, E300 |
| Blade size | E blades, 3.2mm diameter |
| Applications | Straight edge, hole edge, cross-hole both edges |
| Both sides of a hole | E300 blade, material up to 6mm (0.24") thick |
Supplied with
- Mango II long-reach handle
- E holder
- E100, E200 and E300 blades
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaviv SH25590065 Long Reach Heavy DeBurr Deburring Tool
SKU: A0132556 | Model: SH25590065
The Mango II Set E is the long-reach heavy-duty set in the Mango II range. You get the Mango II handle, an E holder that takes all E blades, and the E100, E200 and E300 blades.
