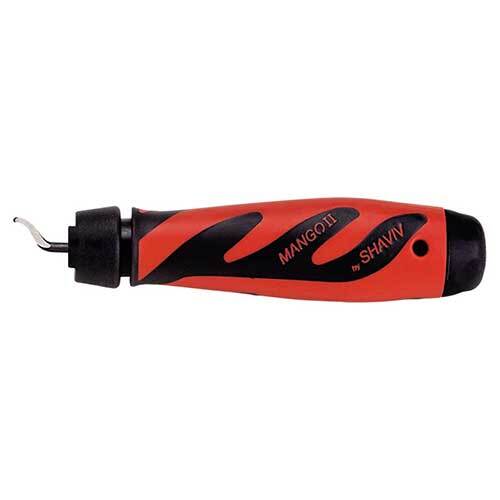

Shaviv SH25590068 Mango IIE+3 Extra Close Deburring Set (3 Blade)
Available
The Shaviv Mango IIE+3 is an extra-close hand deburring set with the Mango IIE handle and three E blades. It handles straight edges and hole edges, and the E300 also deburrs both sides of a hole in one pass. The IIE sets deburr steel, aluminium, copper, brass, cast iron and plastics.
"Extra-close" means the blade fits straight into the handle with no holder, so the tool is short and easy to control. The E100 is the heavy-duty general blade for materials with spiral chips. The E200 is for materials with powdery chips and cuts in both directions. The E300 deburrs the inside and outside of a hole in one pass, in material up to 6mm (0.24") thick. Spiral chips are long curls of swarf. Powdery chips are fine, dust-like swarf. HSS is high-speed steel, the standard blade steel for general deburring. If you only need one blade, the Mango IIE+1 has the E100. The IIE+5 adds the E111 for holes down to 1.5mm (0.06") and the E120.
Where this product is used
- Deburring straight edges and hole edges on steel, aluminium, copper, brass, cast iron and plastics
- Deburring both sides of a hole in one pass with the E300 blade
- Finishing materials that make spiral chips or powdery chips
Features
- Mango IIE extra-close handle with 3 E blades: E100, E200, E300
- Deburrs straight edges and hole edges
- Handle takes any E or B series blade, so you can add blades later
- Permanent adapters make blade changes simple
- Comfortable, ergonomic handle for standard-sized hands
- E200 suits materials with powdery chips and cuts in both directions
- E300 deburrs the inside and outside of a hole in one pass, up to 6mm (0.24") thick
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shaviv |
| Model | Mango IIE+3 |
| Part number | SH25590068 |
| Type | Hand deburring set, extra-close |
| Handle | Mango IIE extra-close handle |
| Blades (3) | E100, E200, E300 |
| Blade size | E blades, 3.2mm diameter |
| Applications | Straight edge, hole edge |
| Both sides of a hole | E300 blade, material up to 6mm (0.24") thick |
| Materials | Steel, aluminium, copper, brass, cast iron, plastics |
Supplied with
- Mango IIE extra-close handle
- E100, E200, E300 blades
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaviv SH25590068 Mango IIE+3 Extra Close Deburring Set (3 Blade)
SKU: A0132550 | Model: SH25590068
The Mango IIE+3 is the three-blade set in the Mango IIE range. You get the Mango IIE handle and the E100, E200 and E300 blades, covering spiral-chip and powdery-chip materials and deburring both sides of a hole in one pass.
