Shaviv SH25590071 Long Reach Countersink Deburring Tool
Available

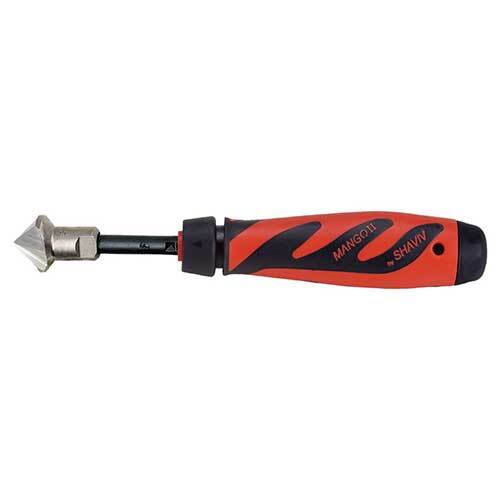

The Shaviv Mango II Set F is a long-reach countersink for chamfering and deburring the edges of holes. It is a powerful tool for chamfering and countersinking hole-edge jobs with holes up to 20mm across. It has a Mango II long-reach handle, an F holder and one F20 countersink blade.
A countersink is a cone-shaped cutter that puts a small bevel, called a chamfer, on the edge of a hole. In a long-reach set the blade sits in a holder on the handle, so it reaches into the part. The F20 blade works on holes up to 20mm. If your holes are smaller or larger, the F12 (up to 12mm) and F30 (up to 30mm) blades fit the same F holder and are sold separately. For a ratchet version that suits tight spaces, Shaviv offers the Mango II Set FR.
Where this product is used
- Chamfering and countersinking hole edges up to 20mm
- Deburring hole edges on steel, aluminium, copper, brass, cast iron, stainless steel and plastics
Features
- Long-reach set: Mango II handle, F holder and F20 countersink blade
- Chamfers and countersinks hole edges up to 20mm
- F holder takes all F blades, so F12 and F30 blades can be added
- F20 blade suits steel, aluminium, copper, brass, cast iron, stainless steel and plastics
- Mango II handle works with all Shaviv holders and has a simple holder mechanism
- Comfortable, ergonomic handle for standard-sized hands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Shaviv |
| Model | Mango II Set F, The Countersink |
| Part number | SH25590071 |
| Type | Countersink deburring set, long-reach |
| Handle | Mango II long-reach handle |
| Holder | F holder, takes all F blades |
| Blade | F20 countersink |
| Hole size | Hole edges up to 20mm |
| Application | Hole edge |
| Materials (F20) | Steel, aluminium, copper, brass, cast iron, stainless steel, plastics |
Supplied with
- Mango II long-reach handle
- F holder
- F20 countersink blade
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Shaviv SH25590071 Long Reach Countersink Deburring Tool
SKU: A0132557 | Model: SH25590071
The Mango II Set F is the long-reach countersink set in the Mango II range. You get the Mango II handle, an F holder and one F20 blade for chamfering and deburring hole edges up to 20mm.
