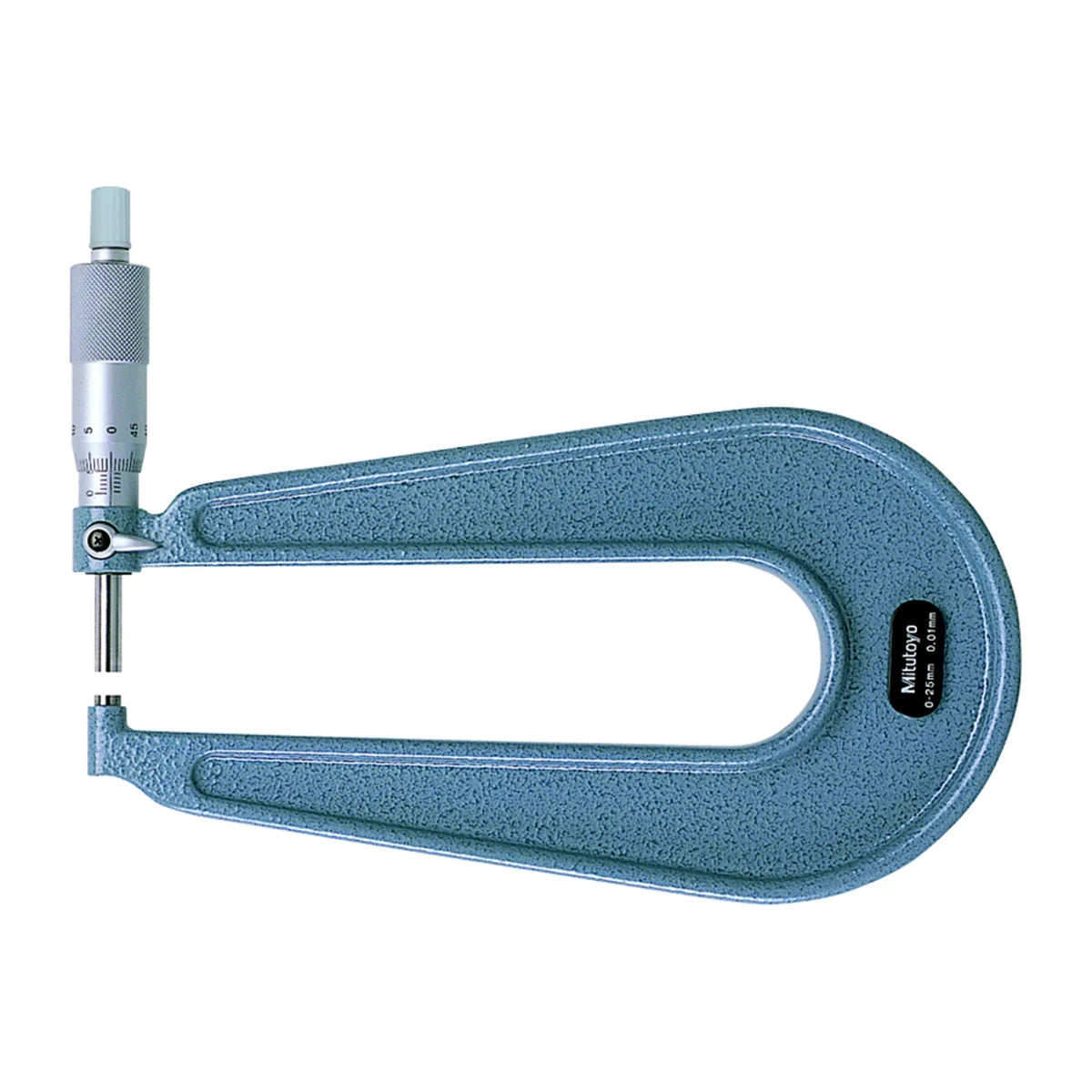

Mitutoyo 118-101 Sheet Metal Micrometer, 100mm

Mitutoyo Series 118 sheet metal micrometers have a deep frame, so you can measure the thickness of sheet metal and rubber parts further in from the edge than a standard micrometer allows. Sheet metal shops, fabricators, toolrooms and quality control teams use them to check plate, sheet and gaskets. They are analog, with a ratchet stop for constant force.

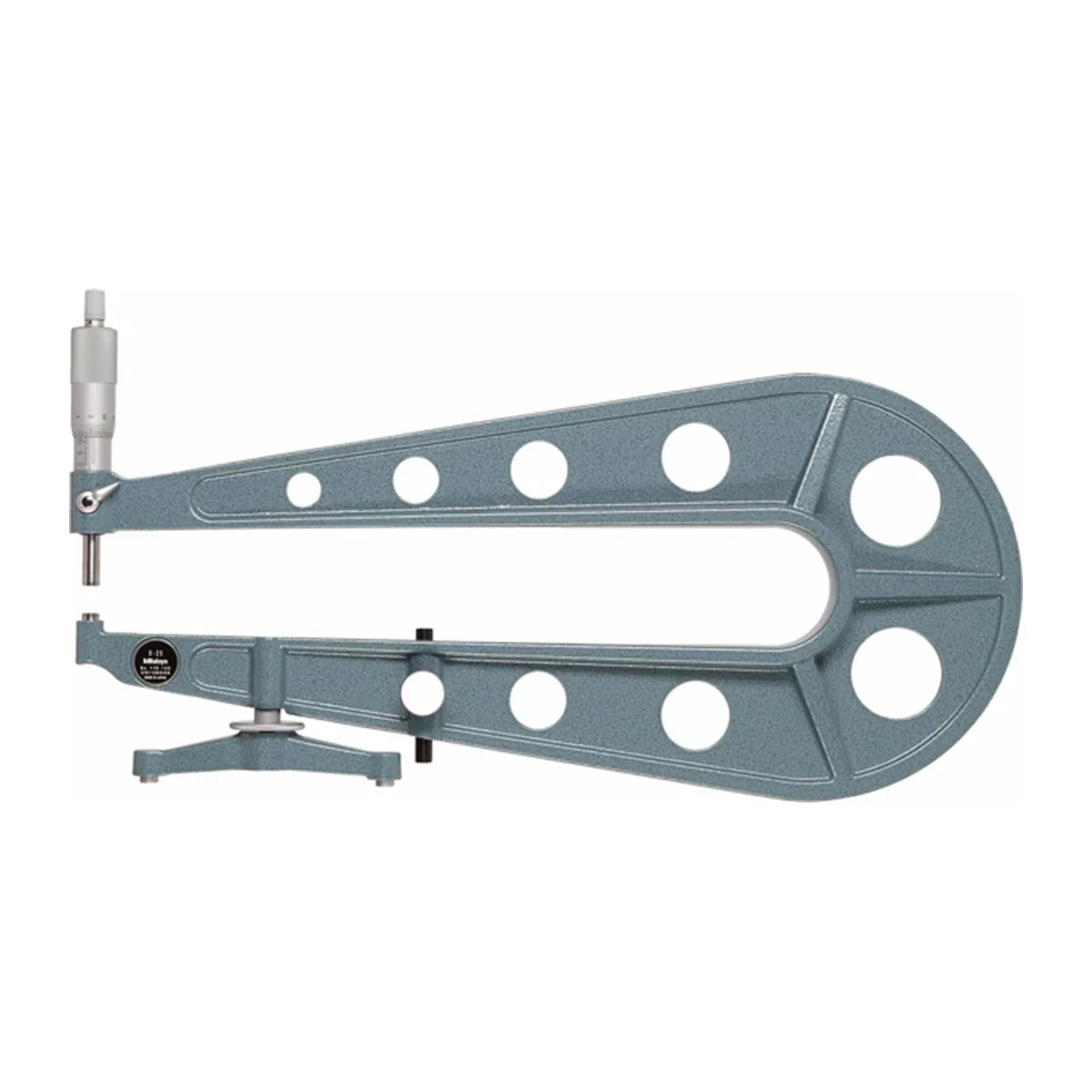

All three models measure 0 - 25mm. The difference is how deep the frame reaches: the 100mm, 150mm and 300mm options. Graduation is the smallest step marked on the scale. Accuracy is a separate figure: it is the biggest error Mitutoyo allows, so do not read a fine graduation as a promise of that accuracy. Pick 100mm or 150mm for most sheet work, and 300mm to reach well into a large sheet. The 150mm model has spherical measuring faces, which suit curved or rounded surfaces.

Where this product is used

• Measuring sheet metal thickness away from the edge
• Checking rubber parts and gaskets
• Fabrication and quality control of sheet and plate

Features

• Deep frame reaches further into the sheet than a standard micrometer
• Measures 0 - 25mm
• Ratchet stop for constant measuring force
• Carbide measuring faces
• Parallelism of 3µm
• Flatness of 0.6µm on 150mm models and 1µm on 300mm models
• Accuracy of ±4µm on the 100mm and 150mm models and ±5µm on the 300mm model
• Spindle lock
