SKF Mudblock MUD11 Cassette Seal 35x65 mm, NBR70

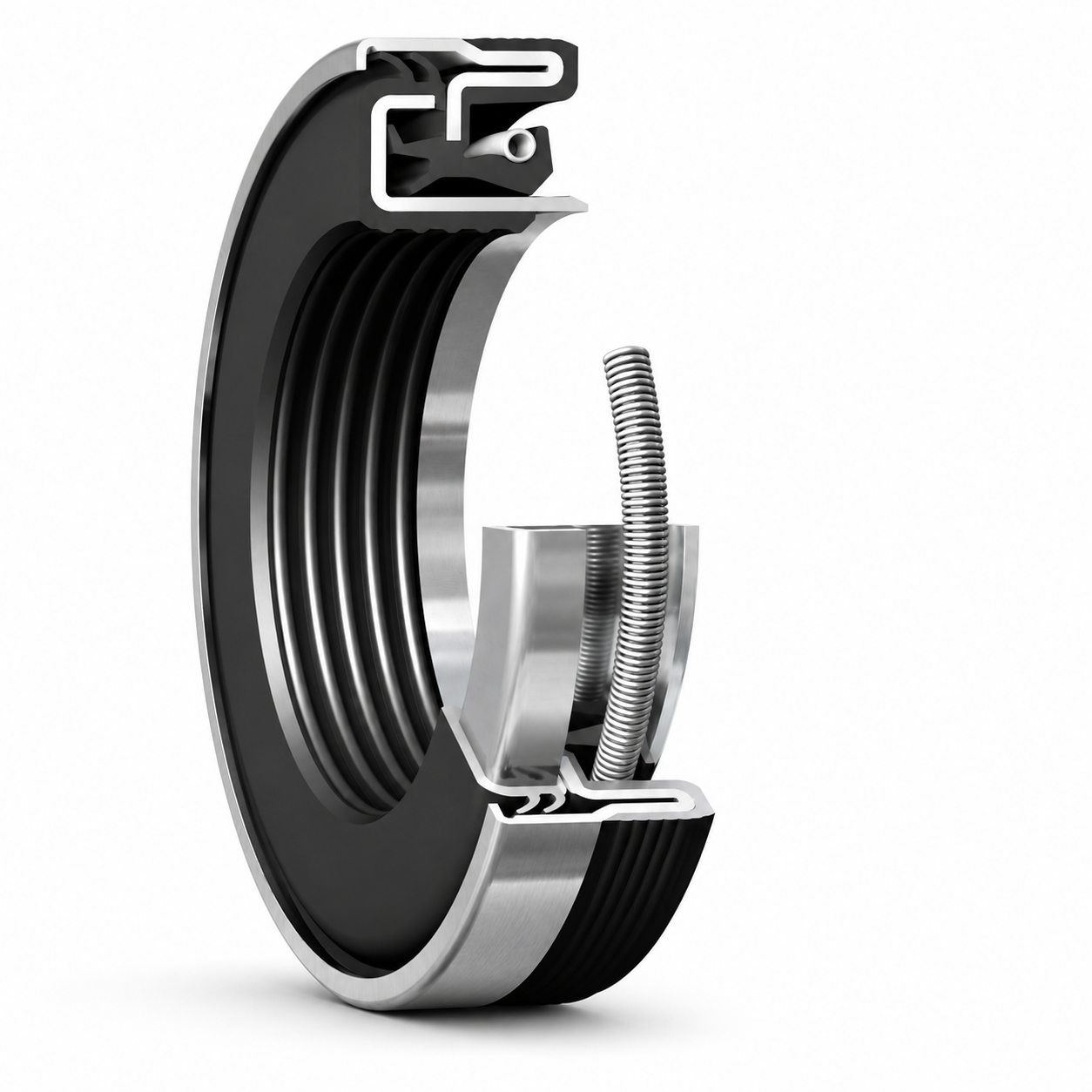

The SKF Mudblock MUD11 is a cassette seal for off-highway use. The seal and its wear sleeve form one unit, so the shaft does not need to be ground or hardened. The unit is held together by a curl, which keeps it assembled during transport and installation.

The outside diameter is half metal and half rubber, which helps static sealing and holds the seal in the housing. The main lip is spring-loaded and is backed by pre-greased auxiliary radial and axial lips that guard against liquid and solid contaminants. The standard lip material is an SKF nitrile rubber (NBR) compatible with most synthetic oils.

This listing covers 27 sizes with shaft diameters from 35 mm to 170 mm and bore diameters from 65 mm to 200 mm.

Where this product is used

• Front and rear wheel ends on tractors
• Agricultural machines
• Construction machines and vehicles
• Planetary gearboxes
• Forklifts and forestry vehicles

Features

• Cassette design: seal and wear sleeve in one unit, with no shaft machining needed
• Spring-loaded main lip with pre-greased auxiliary radial and axial lips
• Half metal, half rubber outside diameter for static sealing and retention in the housing
• Full rubber inside diameter that helps static sealing and eases installation
• NBR lip material, compatible with most synthetic oils
• Unitised design held together by a curl
• 27 sizes, from 35 x 65 mm to 170 x 200 mm

Key specifications

Sizes

Widths are SKF's published values. SKF's published MUD11 table does not list the 35x65, 45x70, 48x75, 75x100, 85x110, 85x125, 120x150, 160x190 sizes, so their widths are shown as Contact AIMS.

Selecting and fitting

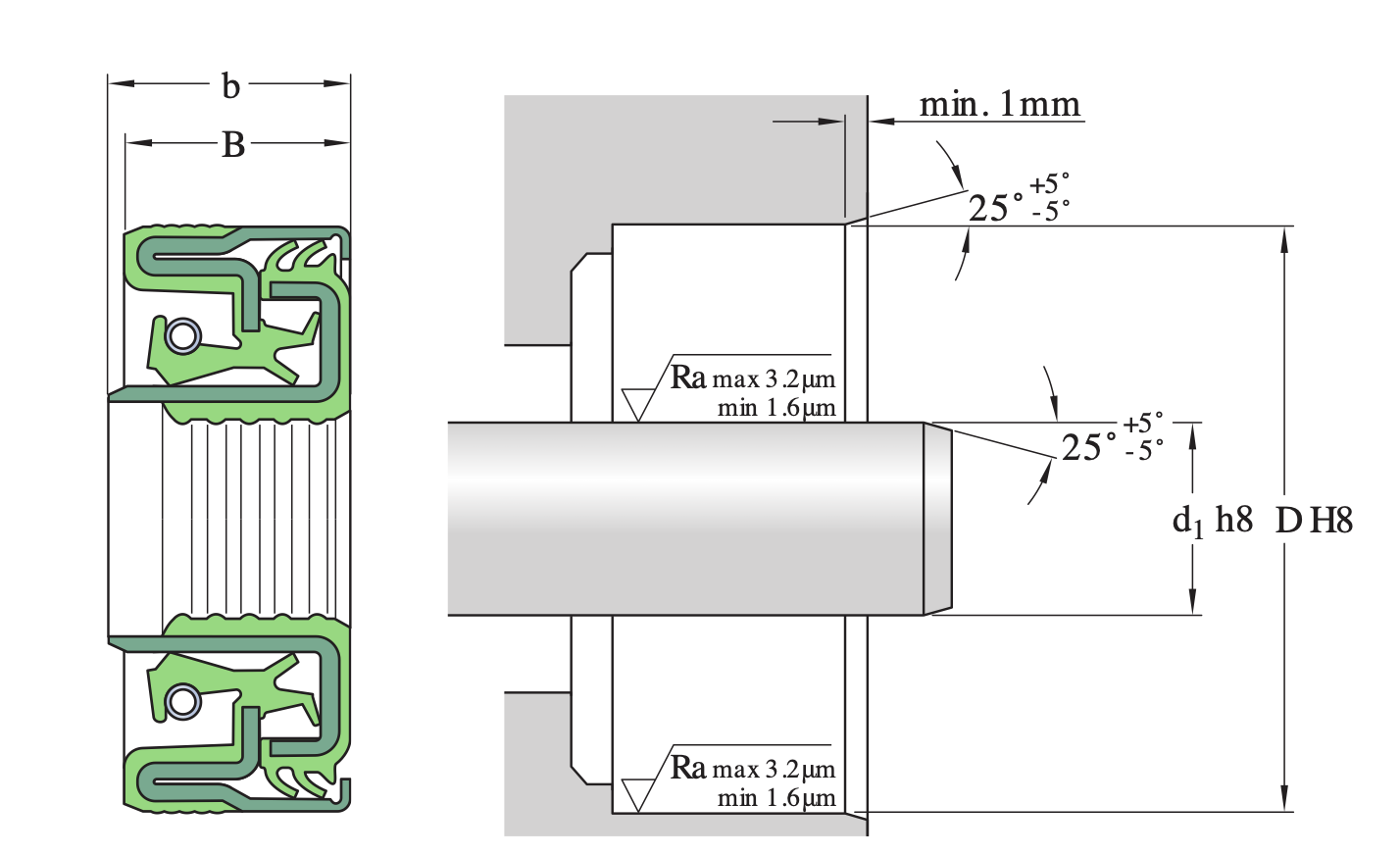

Match the shaft diameter d and bore diameter D to your application. SKF specifies a shaft tolerance of h8 and a housing bore tolerance of H8, both with a surface roughness of Ra 1.6 to 3.2 µm.

Fit the seal into the housing bore using a proper installation tool. The tool should stop the seal reaching the bottom of the housing and leave a small clearance against the seal inside diameter. Then introduce the shaft.

The dimensions above are catalogue values for reference. Contact AIMS to confirm a measurement if it is critical to your application.
