SKF HMSA10 RG Radial Shaft Seal 40 x 56 x 8 mm, NBR - Pack of 2
Available

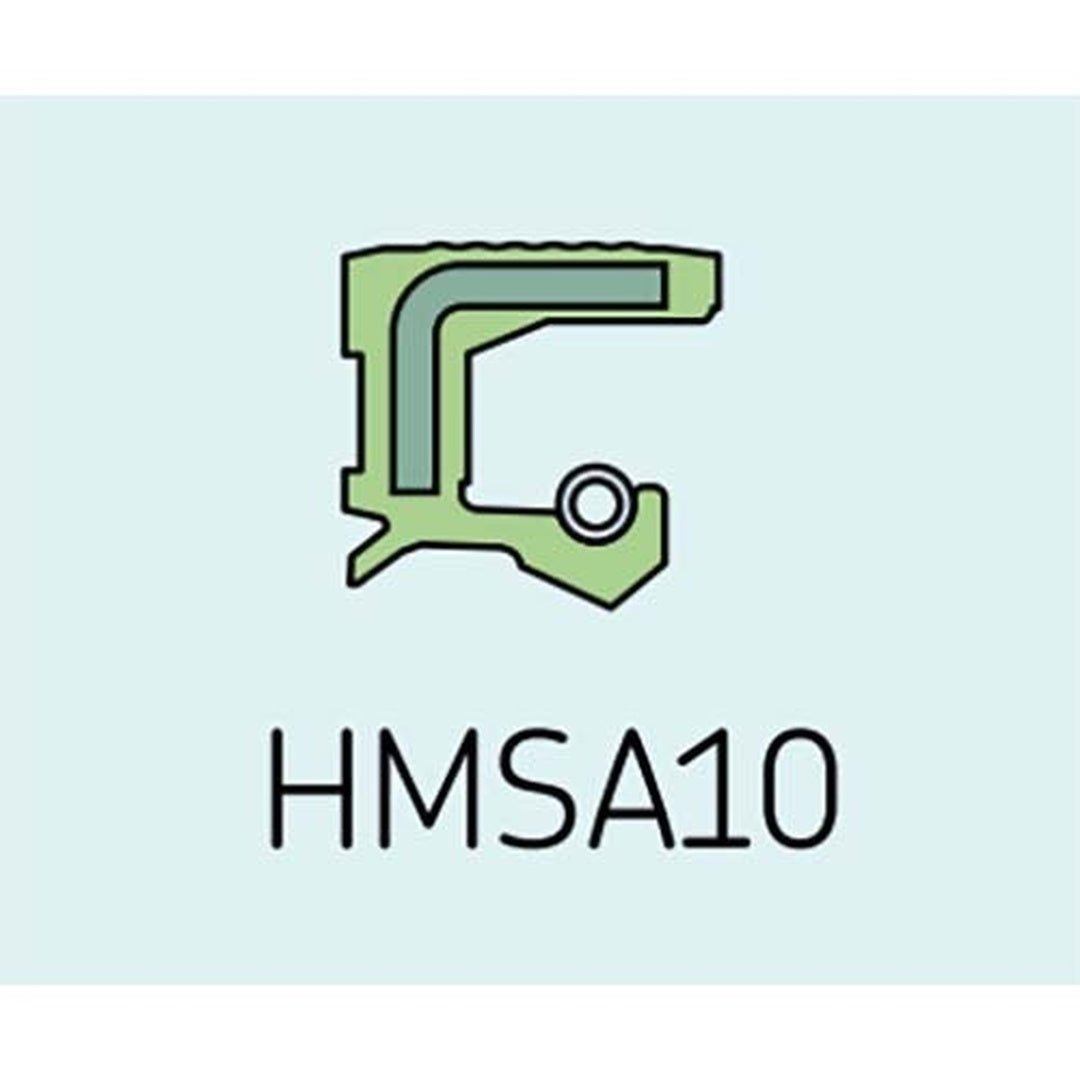

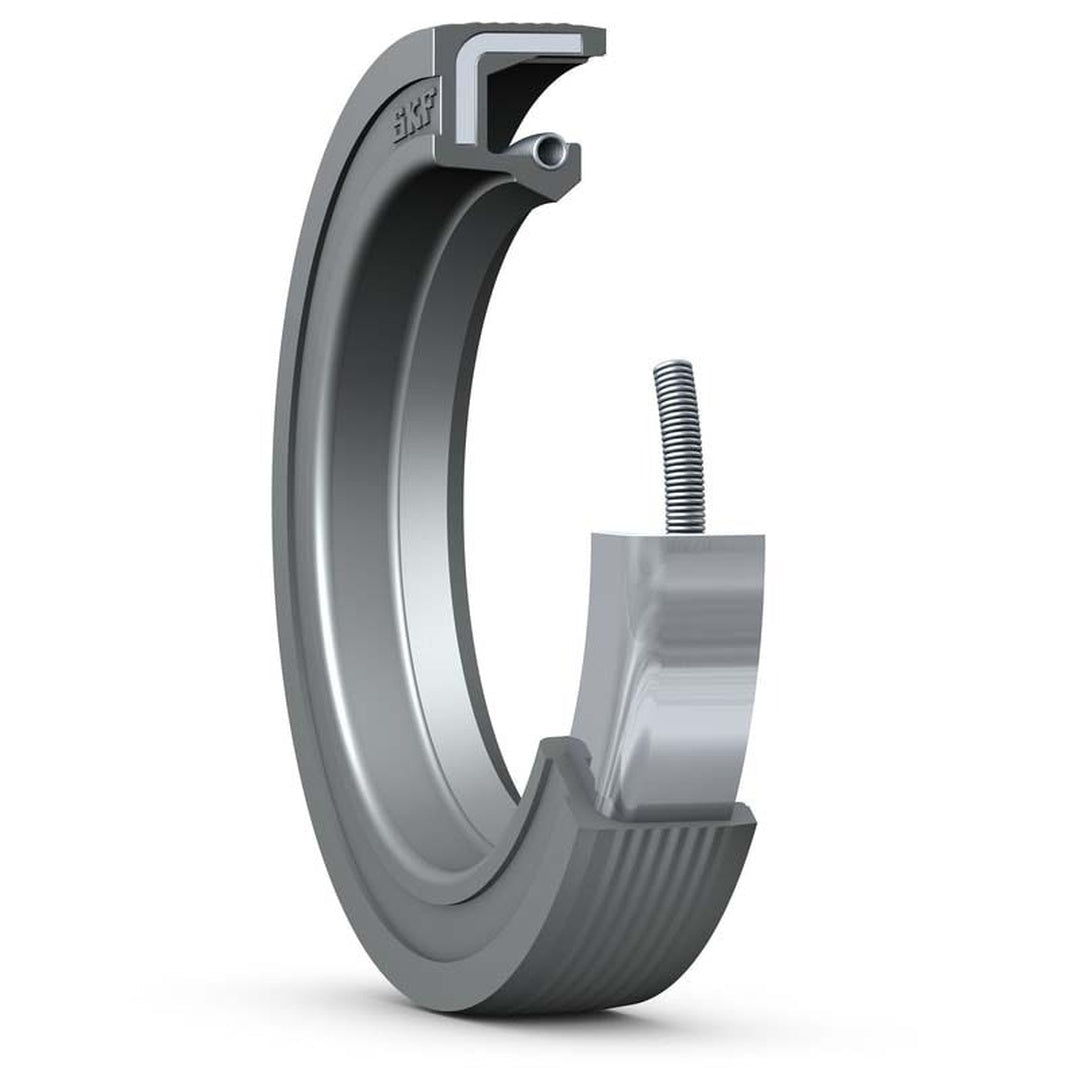

The HMSA10 is an SKF CR Seal with a rubber outside diameter, a spring-loaded main sealing lip and a non-contacting auxiliary lip.
An oil seal has two main parts: an outer cylindrical casing that is a press fit in the housing bore, and a sealing lip that runs on the shaft. The lip is what keeps oil or grease in and contamination out at the point where the shaft passes through the housing.
The sealing material is NBR (nitrile rubber). SKF describes its standard nitrile rubber as a general-purpose sealing lip material that resists most mineral oils and greases, normal fuels such as petrol and diesel, animal and vegetable oils and fats, and hot water, and that tolerates short-term dry running.
SKF publishes the HMSA10 range for oil or grease lubricated applications with a circumferential speed up to 14 m/s and a maximum operating pressure of 0.03 MPa. Each of these is a maximum for its own condition, and they should not occur together.
This is a clearance item and is sold as-is. No returns or exchanges apply. Please contact us if you require further details or wish to inspect the item prior to purchase
Where this product is used
- Gearboxes and speed reducers
- Pumps and motors
- Rollers and general rotating equipment
- Shaft penetrations in housings where lubricant must stay in
Features
- Rubber outside diameter that seals in the housing, including a rough or split housing
- Beads on the outside diameter that help the seal hold in the bore and resist spring-back during installation
- Spring-loaded main sealing lip
- Non-contacting auxiliary lip
- Oil or grease lubricated applications
- NBR (nitrile rubber) sealing material
- 3 sizes: 40 x 56 x 8 mm; 55 x 72 x 10 mm; 70 x 110 x 8 mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | SKF |
| Product | Radial shaft seal (CR Seal) |
| Series | HMSA10 |
| Style | RG |
| Material | NBR (nitrile rubber) |
| Lubrication | Oil or grease |
| Maximum circumferential speed | 14 m/s (SKF series limit) |
| Maximum operating pressure | 0.03 MPa (SKF series limit) |
| Operating temperature (NBR) | -40 to +100 °C, up to 120 °C for brief periods (SKF, standard nitrile rubber) |
| Sizes | 40 x 56 x 8 mm; 55 x 72 x 10 mm; 70 x 110 x 8 mm |
Sizes

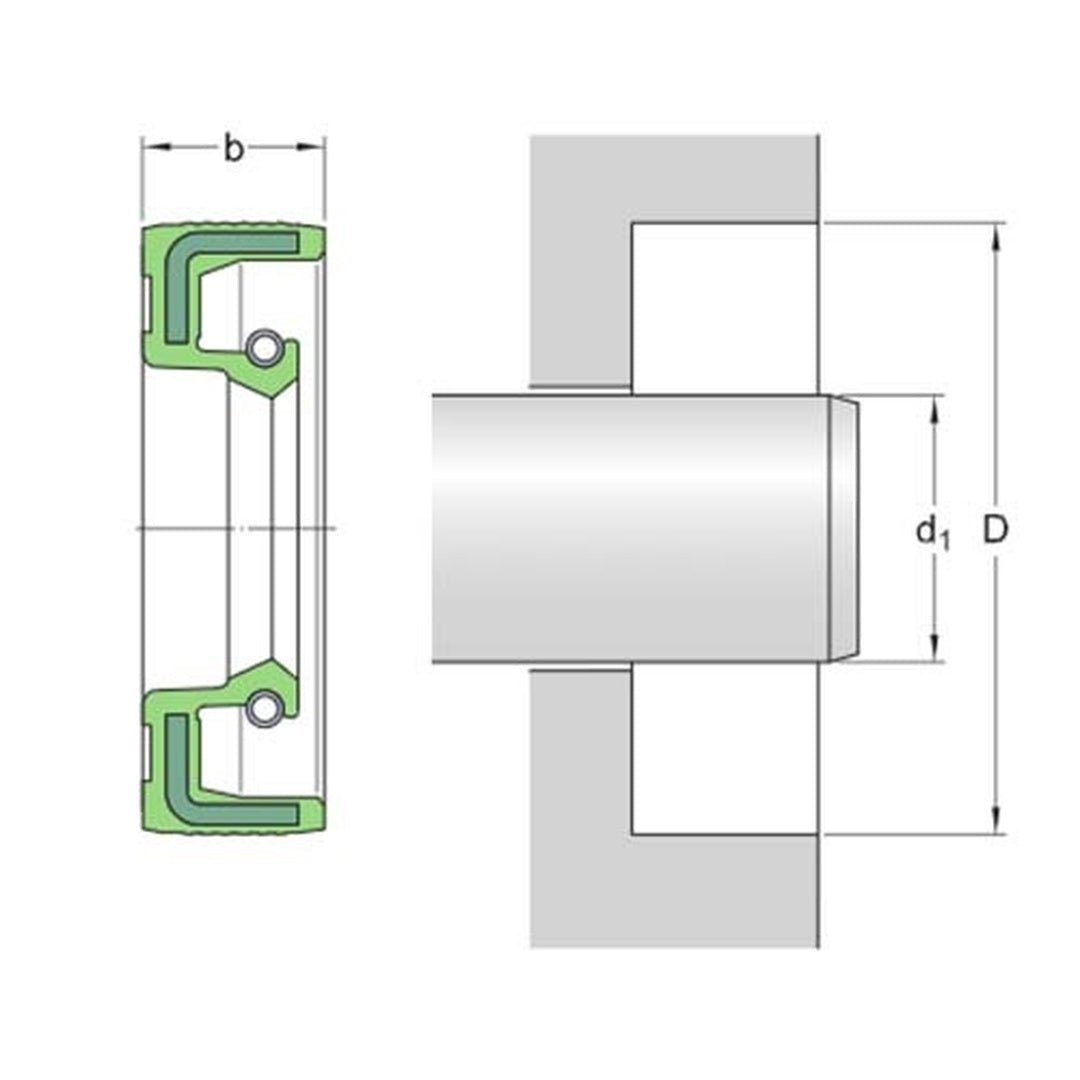

| Model | Shaft diameter d | Housing bore D | Seal width |
|---|---|---|---|
| 40*56*8 HMSA10 RG | 40 mm | 56 mm | 8 mm |
| 55*72*10 HMSA10 RG | 55 mm | 72 mm | 10 mm |
| 70*110*8 HMSA10 RG | 70 mm | 110 mm | 8 mm |
The 40 x 56 x 8 mm and 55 x 72 x 10 mm sizes are listed as a pack of 2. The 70 x 110 x 8 mm size is listed as a single seal.
Selecting and fitting
Check the shaft diameter, housing bore diameter and seal width against your application before ordering, and use the dimensions in the sizes table above. The shaft surface the lip runs on must be clean and free from scoring. If the shaft is worn at the seal position, a shaft repair sleeve fixes this without replacing the shaft: SKF Speedi-Sleeve.
The dimensions above are catalogue values for reference. Contact AIMS to confirm a measurement if it is critical to your application.
