Save 25%

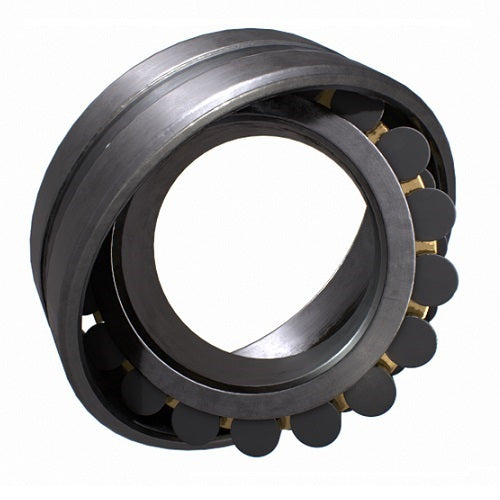

NACHI 22205EXQW33KC3 Spherical Roller | AIMS Industrial
Regular price
$75.20
Sale price
$75.20
Regular price
$100.27
Inc. GST
Available
◆
Tolerates shaft misalignment under heavy radial and combined loads
●
Self-aligning double-row roller design to ISO standard
▲
Straight or tapered bore options for shaft fitting
When misalignment is part of the job. NACHI spherical roller bearings carry very high radial loads with moderate bidirectional axial loads, and tolerate static and dynamic misalignment from mounting error or shaft deflection. Maximised roller geometry lifts the load rating, and the vibration-resistant EXQ-V variant is available where cage strength and corrosion resistance matter. This product page covers the spherical roller family from NACHI supplied at C3 clearance on a tapered bore for adapter-sleeve mounting, with 62 variants spanning the standard size range, so the matching size for your shaft is in stock as a single ordering family.
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
25 x 52 x 18mm bearing
Model Number: 22205EXQW33KC3/NACHI
-
30 x 62 x 20mm bearing
Model Number: 22206EXQW33KC3/NACHI
-
35 x 72 x 23mm bearing
Model Number: 22207EXQW33KC3/NACHI
-
40 x 90 x 33mm bearing
Model Number: 22308EXQW33KC3/NACHI
-
40 x 80 x 23mm bearing
Model Number: 22208EXQW33KC3/NACHI
-
45 x 100 x 36mm bearing
Model Number: 22309EXQW33KC3/NACHI
-
45 x 85 x 23mm bearing
Model Number: 22209EXQW33KC3/NACHI
-
45 x 100 x 25mm bearing
Model Number: 21309EXQW33KC3/NACHI
-
50 x 110 x 40mm bearing
Model Number: 22310EXQW33KC3/NACHI
-
50 x 90 x 23mm bearing
Model Number: 22210EXQW33KC3/NACHI
-
50 x 110 x 27mm bearing
Model Number: 21310EXQW33KC3/NACHI
-
55 x 120 x 43mm bearing
Model Number: 22311EXQW33KC3/NACHI
-
55 x 120 x 29mm bearing
Model Number: 21311EXQW33KC3/NACHI
-
55 x 100 x 25mm bearing
Model Number: 22211EXQW33KC3/NACHI
-
60 x 130 x 46mm bearing
Model Number: 22312EXQW33KC3/NACHI
-
60 x 130 x 31mm bearing
Model Number: 21312EXQW33KC3/NACHI
-
60 x 110 x 28mm bearing
Model Number: 22212EXQW33KC3/NACHI
-
65 x 140 x 48mm bearing
Model Number: 22313EXQW33KC3/NACHI
-
65 x 140 x 33mm bearing
Model Number: 21313EXQW33KC3/NACHI
-
65 x 120 x 31mm bearing
Model Number: 22213EXQW33KC3/NACHI
-
70 x 125 x 31mm bearing
Model Number: 22214EXQW33KC3/NACHI
-
70 x 150 x 35mm bearing
Model Number: 21314EXQW33KC3/NACHI
-
75 x 160 x 55mm bearing
Model Number: 22315EXQW33KC3/NACHI
-
75 x 130 x 31mm bearing
Model Number: 22215EXQW33KC3/NACHI
-
80 x 170 x 58mm bearing
Model Number: 22316EXQW33KC3/NACHI
-
85 x 180 x 60mm bearing
Model Number: 22317EXQW33KC3/NACHI
-
85 x 180 x 41mm bearing
Model Number: 21317EXQW33KC3/NACHI
-
90 x 190 x 64mm bearing
Model Number: 22318EXQW33KC3/NACHI
-
90 x 160 x 40mm bearing
Model Number: 22218EXQW33KC3/NACHI
-
95 x 200 x 67mm bearing
Model Number: 22319EXQW33KC3/NACHI
-
95 x 170 x 43mm bearing
Model Number: 22219EXQW33KC3/NACHI
-
100 x 180 x 60.3mm bearing
Model Number: 23220EXQW33KC3/NACHI
-
100 x 180 x 46mm bearing
Model Number: 22220EXQW33KC3/NACHI
-
100 x 215 x 47mm bearing
Model Number: 21320EXQW33KC3/NACHI
-
110 x 240 x 80mm bearing
Model Number: 22322EXQW33KC3/NACHI
-
110 x 200 x 53mm bearing
Model Number: 22222EXQW33KC3/NACHI
-
110 x 200 x 69.8mm bearing
Model Number: 23222EXQW33KC3/NACHI
-
110 x 180 x 69mm bearing
Model Number: 24122EXQW33KC3/NACHI
-
120 x 215 x 58mm bearing
Model Number: 22224EXQW33KC3/NACHI
-
120 x 215 x 76mm bearing
Model Number: 23224EXQW33KC3/NACHI
-
120 x 260 x 86mm bearing
Model Number: 22324EXQW33KC3/NACHI
-
120 x 180 x 46mm bearing
Model Number: 23024EXQW33KC3/NACHI
-
120 x 200 x 62mm bearing
Model Number: 23124EXQW33KC3/NACHI
-
120 x 180 x 60mm bearing
Model Number: 24024EXQW33KC3/NACHI
-
120 x 200 x 80mm bearing
Model Number: 24124EXQW33KC3/NACHI
-
130 x 230 x 64mm bearing
Model Number: 22226EXQW33KC3/NACHI
-
130 x 200 x 52mm bearing
Model Number: 23026EXQW33KC3/NACHI
-
130 x 200 x 69mm bearing
Model Number: 24026EXQW33KC3/NACHI
-
130 x 210 x 80mm bearing
Model Number: 24126EXQW33KC3/NACHI
-
140 x 250 x 88mm bearing
Model Number: 23228EXQW33KC3/NACHI
-
140 x 250 x 68mm bearing
Model Number: 22228EXQW33KC3/NACHI
-
140 x 210 x 69mm bearing
Model Number: 24028EXQW33KC3/NACHI
-
140 x 225 x 85mm bearing
Model Number: 24128EXQW33KC3/NACHI
-
150 x 270 x 73mm bearing
Model Number: 22230EXQW33KC3/NACHI
-
150 x 225 x 56mm bearing
Model Number: 23030EXQW33KC3/NACHI
-
150 x 250 x 80mm bearing
Model Number: 23130EXQW33KC3/NACHI
-
150 x 270 x 96mm bearing
Model Number: 23230EXQW33KC3/NACHI
-
150 x 225 x 75mm bearing
Model Number: 24030EXQW33KC3/NACHI
-
150 x 250 x 100mm bearing
Model Number: 24130EXQW33KC3/NACHI
-
160 x 240 x 60mm bearing
Model Number: 23032EXQW33KC3/NACHI
-
170 x 260 x 67mm bearing
Model Number: 23034EXQW33KC3/NACHI
-
180 x 280 x 74mm bearing
Model Number: 23036EXQW33KC3/NACHI
