Stahlwille Fine-tooth 3/8" ratchet

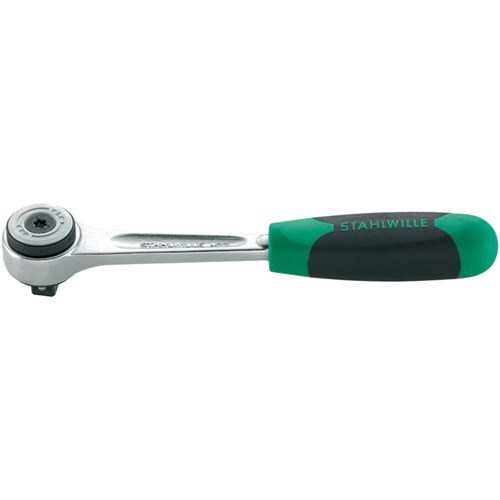

Stahlwille 422-2K is a reversible 3/8" drive fine-tooth ratchet with 60 teeth, a 6° working angle and a 2-component handle. It is 194mm long and weighs 236 g. Sockets are held on the square by a ball detent; there is no QuickRelease push button. The ratchet is made to DIN 3122 / ISO 3315 and gives the material as chrome alloy steel, chrome-plated.

Where this product is used

• Assembly and maintenance work with 3/8" drive sockets in confined spaces
• Work where a 6° swing is available but QuickRelease is not needed
• General workshop use with 3/8" drive tooling

Features

• 3/8" external square drive, reversible
• 60 teeth, 6° working angle
• Ball detent, no QuickRelease
• 2-component handle
• 194mm long, 236 g
• Chrome alloy steel, chrome-plated
• Made to DIN 3122 / ISO 3315

Key specifications

Choosing the right option

The 422-2K sits between the 30-tooth Stahlwille 435-2K 3/8" Drive Reversible Ratchet (12° swing) and the 80-tooth QuickRelease ratchets, the Stahlwille 435QR N 3/8" Drive QuickRelease Fine-Tooth Ratchet and Stahlwille 435SG-QRN 3/8" Drive QuickRelease Fine-Tooth Ratchet (4.5° swing). Spare parts for this ratchet are in the Stahlwille 7350/5 Spare Parts Kit for 735/5 Ratchet Insert Tool and 422-2K, which also suits the 735/5 insert tool.

Related Stahlwille products: Stahlwille 435-2K 3/8" Drive Reversible Ratchet, Stahlwille 435QR N 3/8" Drive QuickRelease Fine-Tooth Ratchet, Stahlwille 435SG-QRN 3/8" Drive QuickRelease Fine-Tooth Ratchet, Stahlwille 452QR 3/8" Drive QuickRelease Flexible-Joint Ratchet.
