Stahlwille 568 Reducing Adaptor, 3/4" Female to 1/2" Male Square Drive
Available

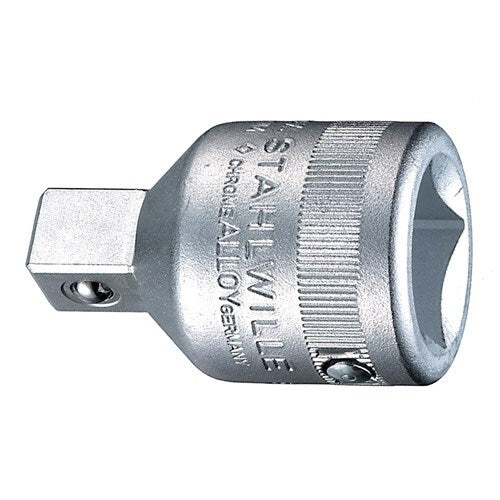

Stahlwille 568 is a reducing adaptor with a 3/4" female (20mm) input and a 1/2" male (12.5mm) output. It is 55mm long, weighs 203 g and has a maximum torque of 512 N·m. It is made from HPQ high-performance steel, chrome-plated, and is made to DIN 3123 / ISO 3316.
Where this product is used
- Fitting 1/2" drive sockets to a 3/4" drive ratchet or bar
- Heavier hand-operated service work
- Using one 3/4" tool across two drive sizes
Features
- 3/4" female to 1/2" male square
- 55mm long, 203 g
- Maximum torque 512 N·m
- HPQ high-performance steel, chrome-plated
- Made to DIN 3123 / ISO 3316
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Socket Adaptor |
| Stahlwille order number | 15030003 |
| Female (input) square | 3/4" |
| Male (output) square | 1/2" |
| Square sizes in mm | 20mm female, 12.5mm male |
| Length | 55mm |
| Weight | 203 g |
| Maximum torque | 512 N·m |
| Standard | DIN 3123 / ISO 3316 |
| Material | HPQ® high-performance steel, chrome-plated |
Choosing the right option
The 568 steps down from a 3/4" tool, such as the Stahlwille 552 3/4" Drive QuickRelease Reversible Ratchet Head, to 1/2" sockets. To step up from 3/4" to 1" see the Stahlwille 569 Step-Up Adaptor, and for 1/2" to 3/4" see the Stahlwille 514 Step-Up Adaptor. Keep to the torque rating of the 1/2" tool you fit.
Related Stahlwille products: Stahlwille 552 3/4" Drive QuickRelease Reversible Ratchet Head, Stahlwille 569 Step-Up Adaptor, Stahlwille 514 Step-Up Adaptor, Stahlwille 513 Reducing Adaptor.
