Stahlwille Step-up adaptor
Available

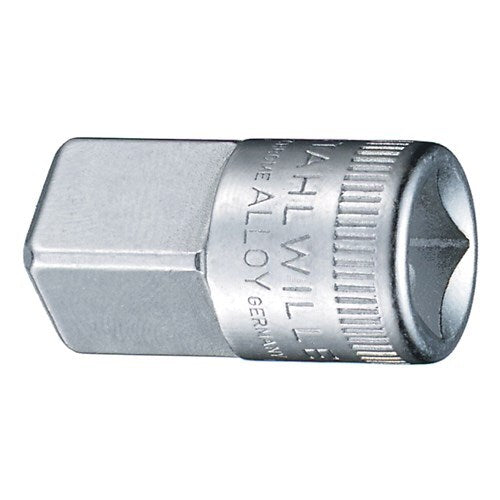

Stahlwille 432 is a step-up adaptor with a 3/8" female (10mm) input and a 1/2" male (12.5mm) output. It is 31mm long and weighs 36 g. It is made from HPQ high-performance steel, chrome-plated, and is made to DIN 3123 / ISO 3316. It is an accessory to the 435SG-QRN and 452QR ratchets.
Where this product is used
- Fitting 1/2" drive sockets to a 3/8" drive ratchet
- Hand-operated service work
- Using one 3/8" ratchet across two drive sizes
Features
- 3/8" female to 1/2" male square
- 31mm long, 36 g
- HPQ high-performance steel, chrome-plated
- Made to DIN 3123 / ISO 3316
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Socket Adaptor |
| Stahlwille order number | 12030003 |
| Female (input) square | 3/8" |
| Male (output) square | 1/2" |
| Square sizes in mm | 10mm female, 12.5mm male |
| Length | 31mm |
| Weight | 36 g |
| Standard | DIN 3123 / ISO 3316 |
| Material | HPQ® high-performance steel, chrome-plated |
Choosing the right option
The 432 steps up from a 3/8" ratchet, such as the Stahlwille 435SG-QRN 3/8" Drive QuickRelease Fine-Tooth Ratchet or the Stahlwille 452QR 3/8" Drive QuickRelease Flexible-Joint Ratchet, to 1/2" tools. To step down from 3/8" to 1/4" see the Stahlwille 431 Reducing Adaptor.
Related Stahlwille products: Stahlwille 435SG-QRN 3/8" Drive QuickRelease Fine-Tooth Ratchet, Stahlwille 452QR 3/8" Drive QuickRelease Flexible-Joint Ratchet, Stahlwille 431 Reducing Adaptor, Stahlwille 410 Step-Up Adaptor.
